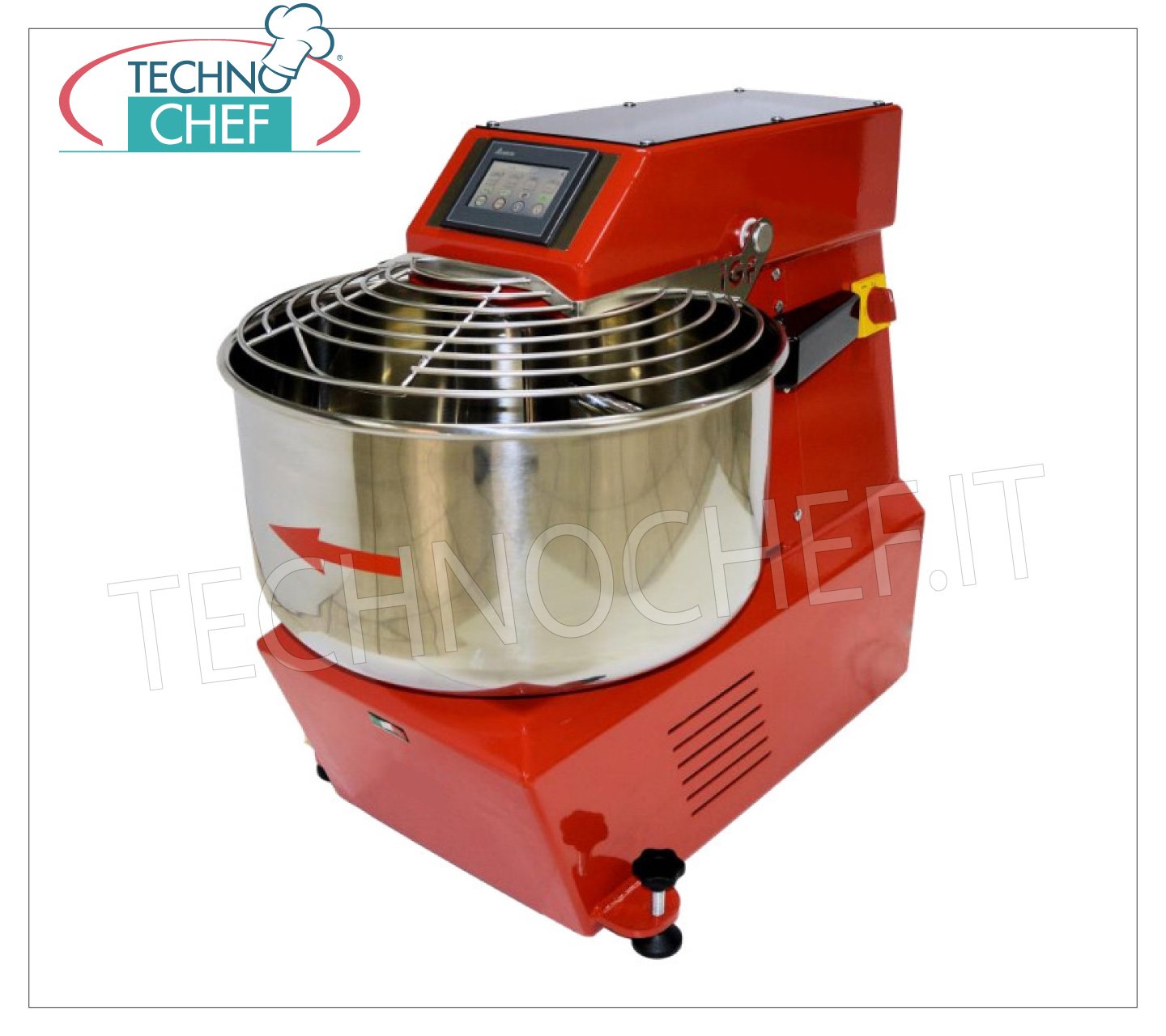

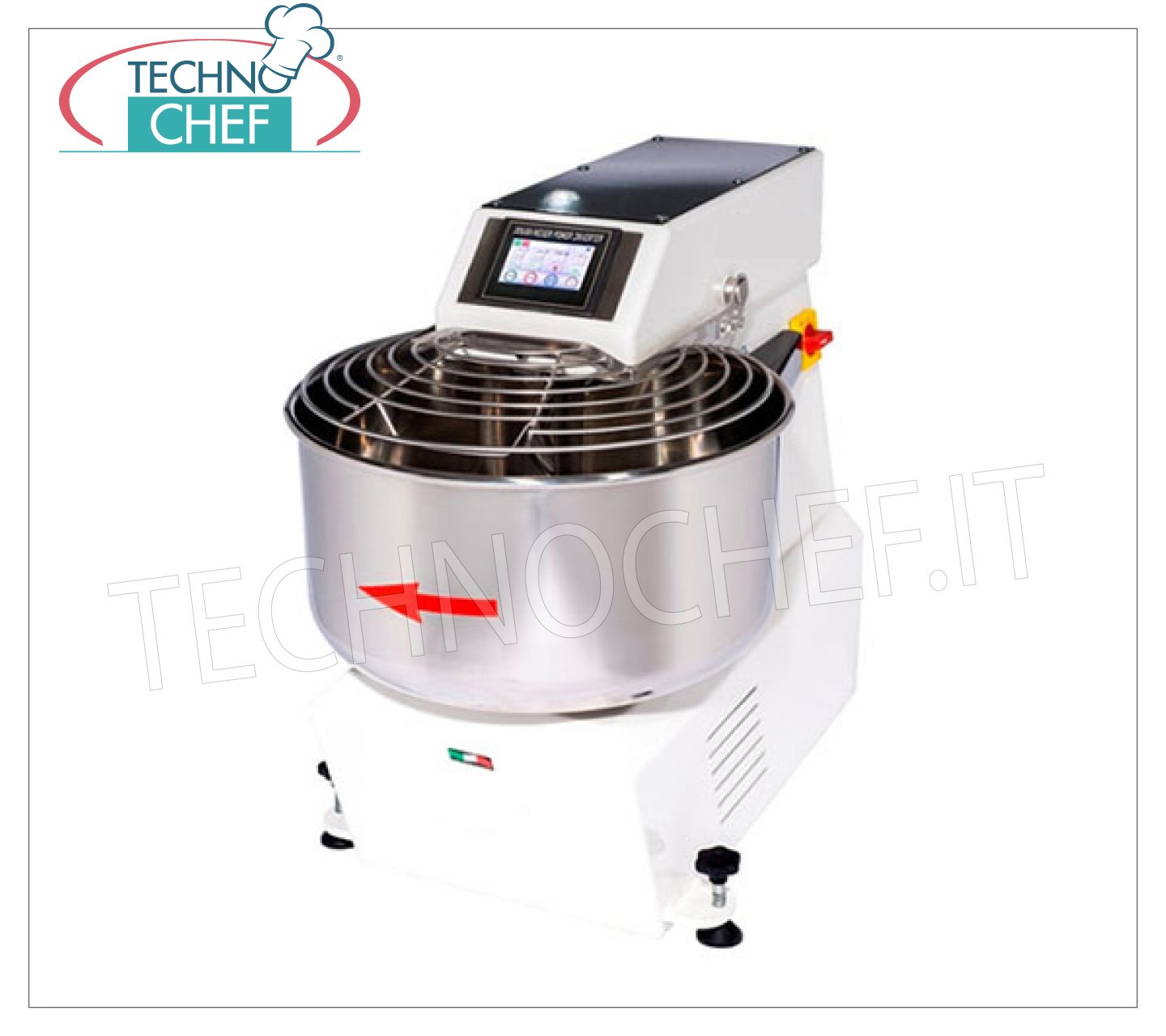

42 kg HIGH HYDRATION SPIRAL MIXER, 50 lt bowl, 2 SPEEDS - 2 Motors, Bowl rotation reversal, mod.3000/R422 REVOLUTION

42 kg SPIRAL MIXER for HIGHLY HYDRATED DOUGH, 50 l STAINLESS STEEL BOWL , 2 Speeds, Bowl rotation reversal, Variators

of SPEED for Spiral and Tank, Touch Controls and lighting in the Tank:

.

• For professionals in the pizza and bakery sector , specially designed for high hydration doughs ;
• Compact for housing under workbenches;
• Elegant and innovative design;
• Resistant and silent thanks to an advanced mechanics, of MADE IN ITALY quality, and to the special conformation of the steel frame ;
• Double gearmotor in oil bath for independent operation of bowl rotation from that of the whisk with power transmission to the whisk optimized for maximum energy efficiency;
• Double speed of the SPIRAL with a high number of strokes for the processing of highly hydrated doughs;
• Bowl rotation reversal to allow better collection of the dough in the initial processing phase and increase its oxygenation;
• Bowl speed continuously adjustable from 5.2 to 14 rpm;
• Automatic operation of the machine with double timing (for the two speeds of the whisk) with comfortable and accessible controls on the front of the head;
• Bowl rotation with manual control button to facilitate emptying;
• Combined multi-rotation system of the forged whisk with an appropriate shape to obtain a homogeneous mixture at optimal temperature;
• Possibility of processing even small and medium quantities of dough (starting from a few kilograms of flour) thanks to the rounded lower edge of the bowl and the right curvature of the spiral which faithfully follows its profile;
• Sturdy pasta splitter adjustable in height and distance from the whisk which, combined with the particular shape of the whisk terminal, allows excellent cleaning of the bowl and allows you to make even small quantities of dough;
• Enveloping pot guide rollers to reduce bowl bending;
• Pot protection grid in stainless steel with anti-drip shape and front opening to allow the addition of ingredients;
• Side locks to the base to stabilize the mixer during the working process;
• Solid retractable wheels in the frame for quick repositioning of the machine under workbenches or in any other desired place;
• Electrical system with low voltage controls, motor thermal protection and emergency mushroom switch.

.

SPECIFIC CHARACTERISTICS of the 3000/R422 Revolution :

.

• 50-litre tank with widely rounded bottom edge
  increased ;
• Precisely shaped whisk in relation to the rounded edge of the bowl ;
• Pasta splitter , even more robust, mounted inclined with respect to the front of the machine, adjustable in dough cutting inclination, in height and distance from the whisk .
• Improvement of the motorisation of the whisk with a 2.2Kw motor which allows to reach a speed of 238 beats;
• Whip turns 119 in 1st speed and 238 in 2nd speed

• Bowl speed continuously adjustable from 5.2 to 14 rpm , for highly hydrated doughs;

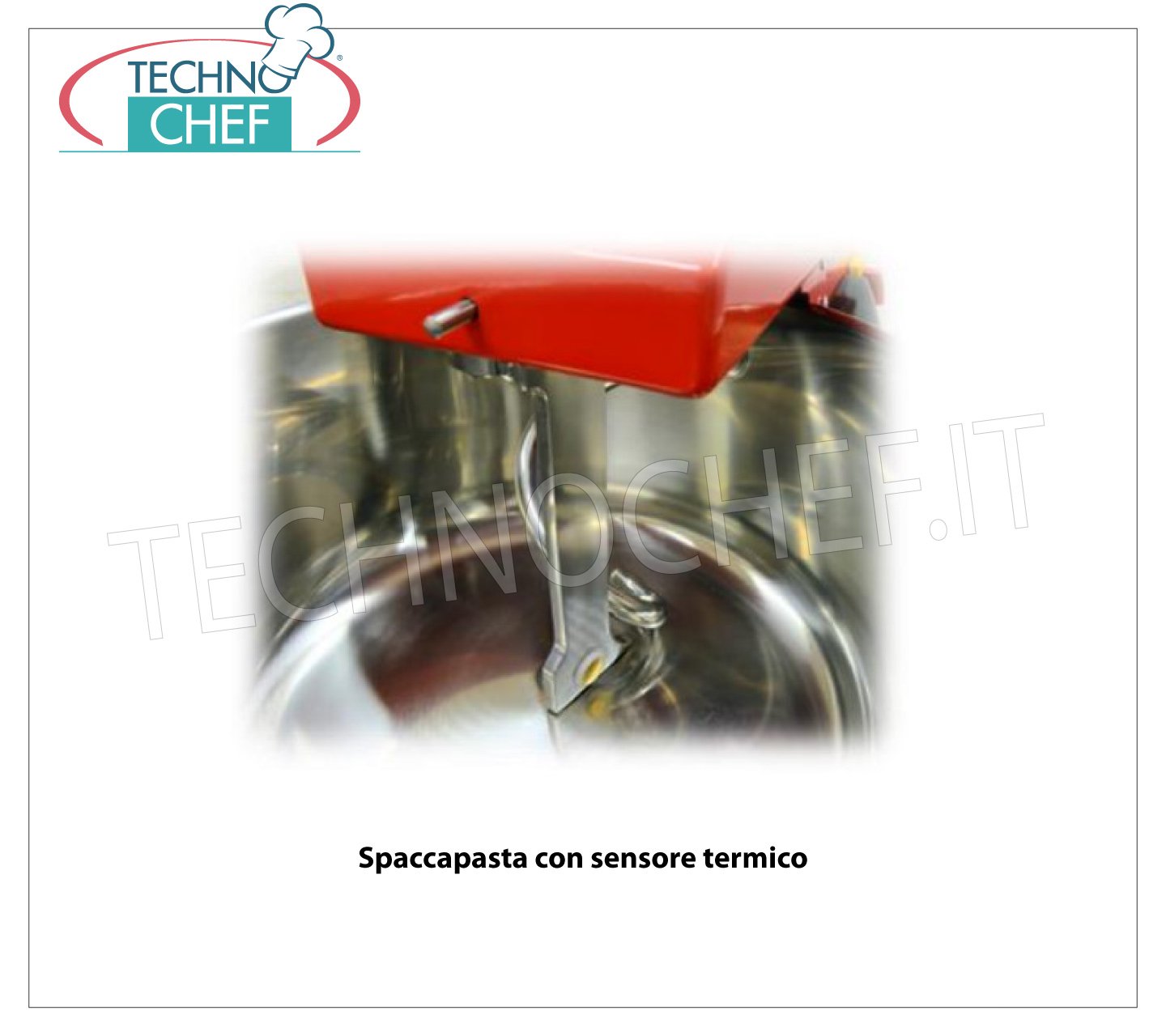

• Thermal probe in contact with the dough, housed in the dough splitter, with alarm threshold;
• Bowl motor drive inverter for precise control of the number of beats of the whisk (by varying the rotation speed of the bowl, the number of beats of the whisk on the dough varies significantly);

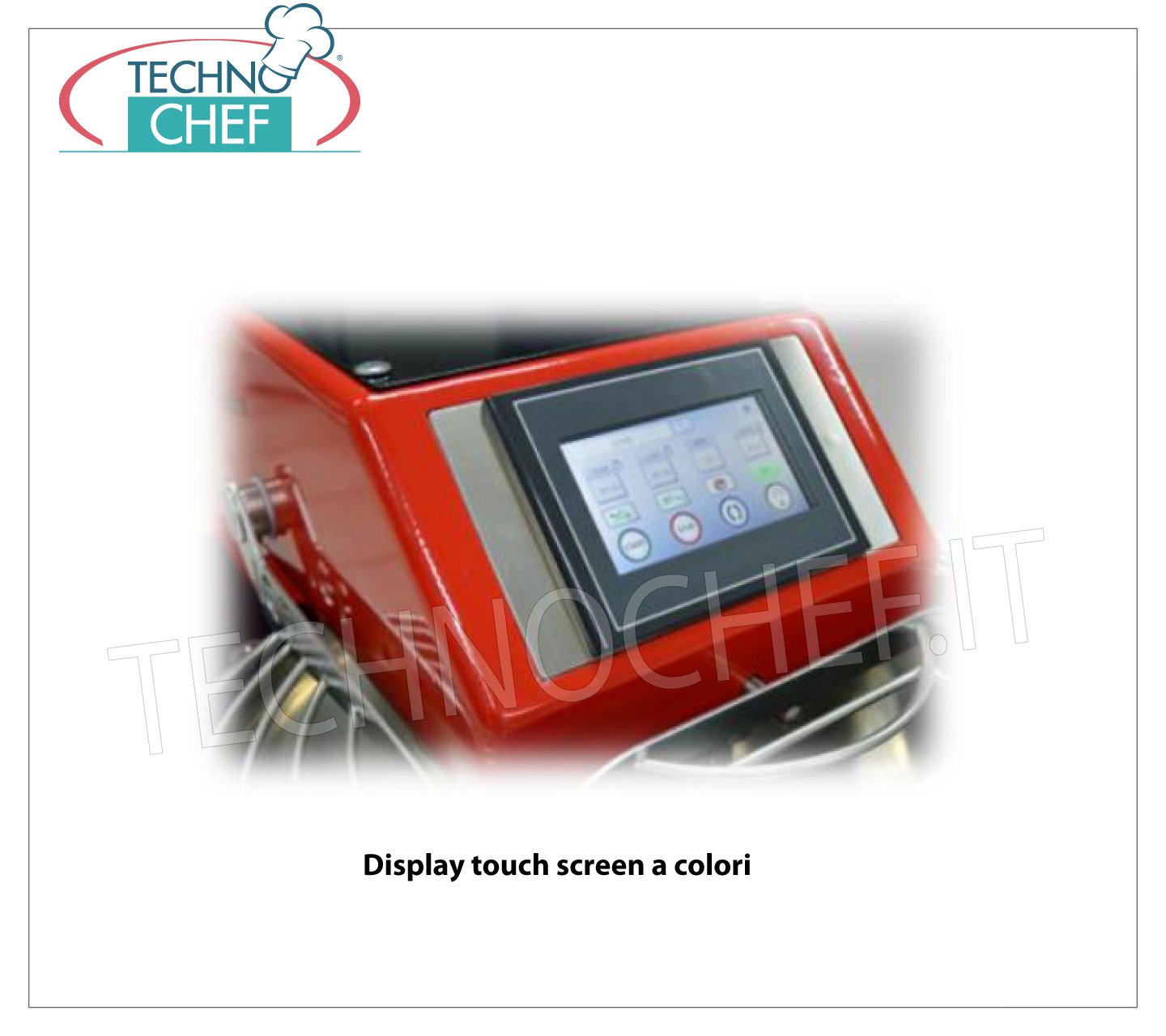

• Color touch screen display and PLC (computerized control) for all the management of the machine which allow manual or automatic operation with timed activation of the two speeds of the whisk, regulation of the speed of the bowl with timed inversion, real-time display of the temperature of the mix with settable alarm threshold and complete diagnostics;

• Led lighting of the dough controlled by the display;

• Memorisation and intuitive management of over 200 recipes which allow for rapid setting of the machine for the processing of different products (pizza on the plate, in a pan, in a shovel, etc.).

TECHNICAL FEATURES :

• ROUNDED EDGE STAINLESS STEEL TANK : Ø 50 xh 27 cm - capacity 50 Liters / RPM adjustable from 5.2 to 14
• FORGED STAINLESS STEEL SPIRAL : Section Ø 30 mm - Diameter 180 mm - Rpm. 1st speed = 119 - Rpm 2nd speed = 238
• POWER SUPPLY : 3 NPE 2,57 Kw 400 V 50 Hz
• THREE-PHASE MOTOR 2 SPEED PER HOSE : 0.37 Kw 400 V 50 Hz
• INVERTER : 400V 50/60Hz 0.75 kW

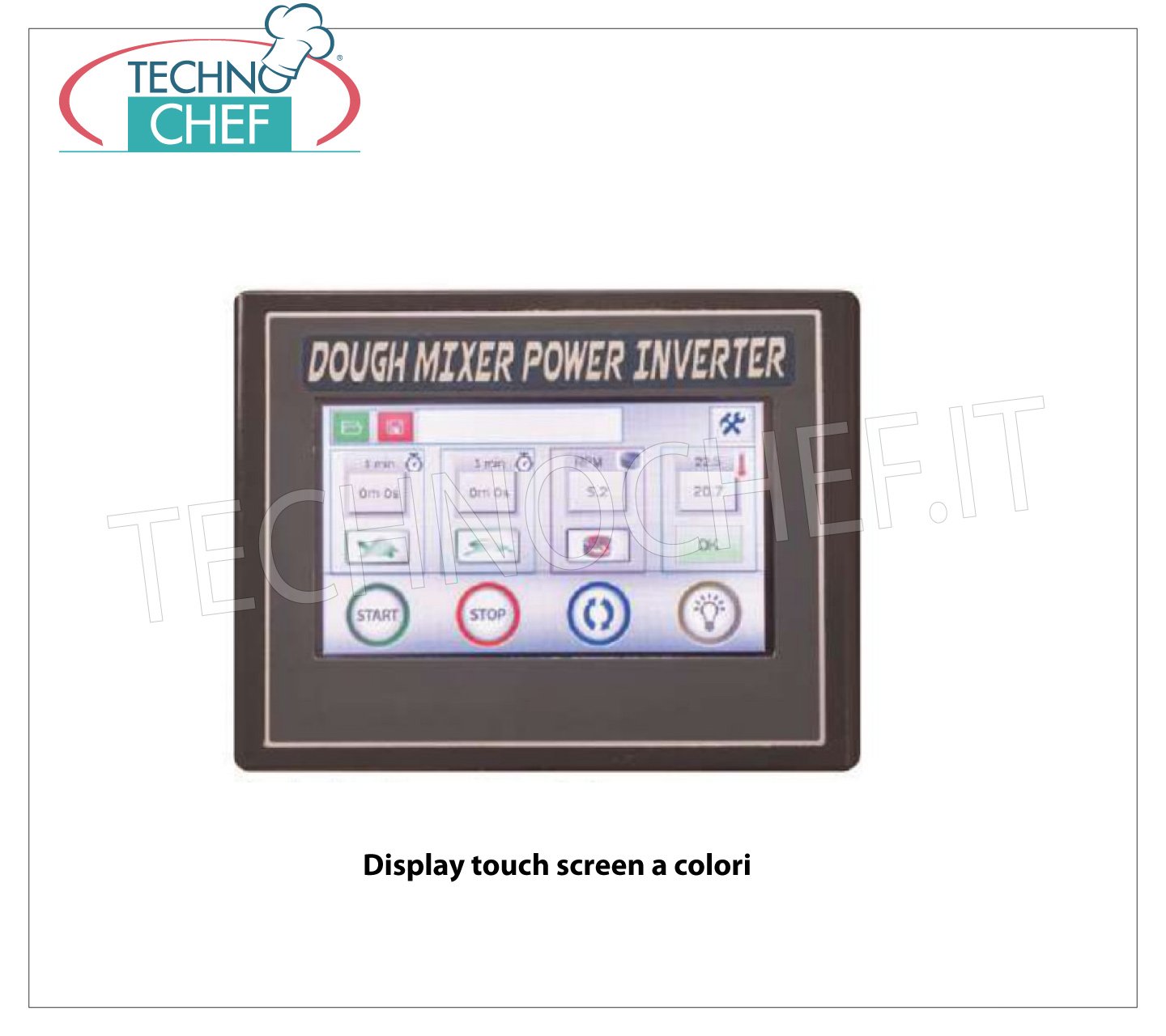

• TOUCH SCREEN DISPLAY : 4.3" 65536 colours
• WEIGHT : 135Kg

CE MARK

MADE IN ITALY
