Hot plate trolleys

print technical specifications

Print technical data sheet without prices

available models

technical card

power supply

Monofase

Volts

V 230/1

frequency (Hz)

5060

motor power capacity (Kw)

breadth (mm)

830

depth (mm)

770

height (mm)

1900

professional description

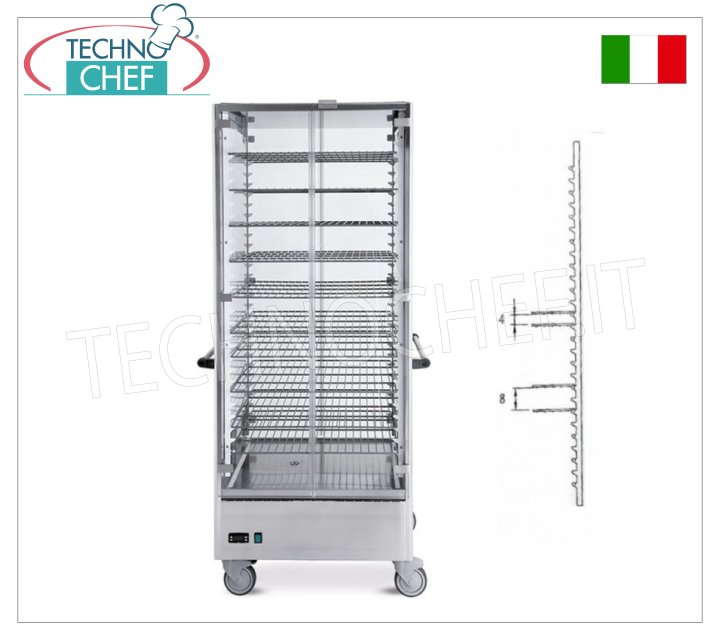

HOT PLATE RACK TROLLEY in version with 15 GRIDS measuring 650x650 mm for a total of 60 PLATES with a MAXIMUM DIAMETER of 310 mm or 90 PLATES with a MAXIMUM DIAMETER of 200 mm:

external and internal structure entirely in stainless steel sheet ;
insulation with high density polyurethane foam injection;
tempered glass doors that open to 180° , with rounded edges and PVC seals in the rebate, removable to allow easier cleaning;
snap-lock hinges;
side push handles in stainless steel tube with PVC supports;
interior equipped with 15 650x650 mm plastic-coated wire grids capable of holding 90 plates with a diameter of up to 200 mm or 60 plates with a diameter of up to 310 mm ;
control panel with digital thermostat-thermometer and ignition switch;
static heating ;
operating temperature included between +30/+60 °C;
bumpers in the 4 corners positioned in the lower part;
spiral power cord, length 3 meters;
swivel wheels with a diameter of 12.5 cm, 2 of which have brakes.

CE MarkMade in Italy

acquista

Code

Description

Price/Delivery

MC-3360GS

HOT PLATE HOLDER TROLLEY in version with 15 GRIDS measuring 650x650 mm for a total of 60 PLATES with a MAX DIAMETER of 310 mm or 90 PLATES with a MAX DIAMETER of 200 mm, static heating with a temperature between 30° and 60 °C, V.230/1, Kw.2.00, dim. mm 830x770x1900h

€ 1.948,90
VAT escluded

Shipping to be calculed

Delivery from 10 to 18 days
