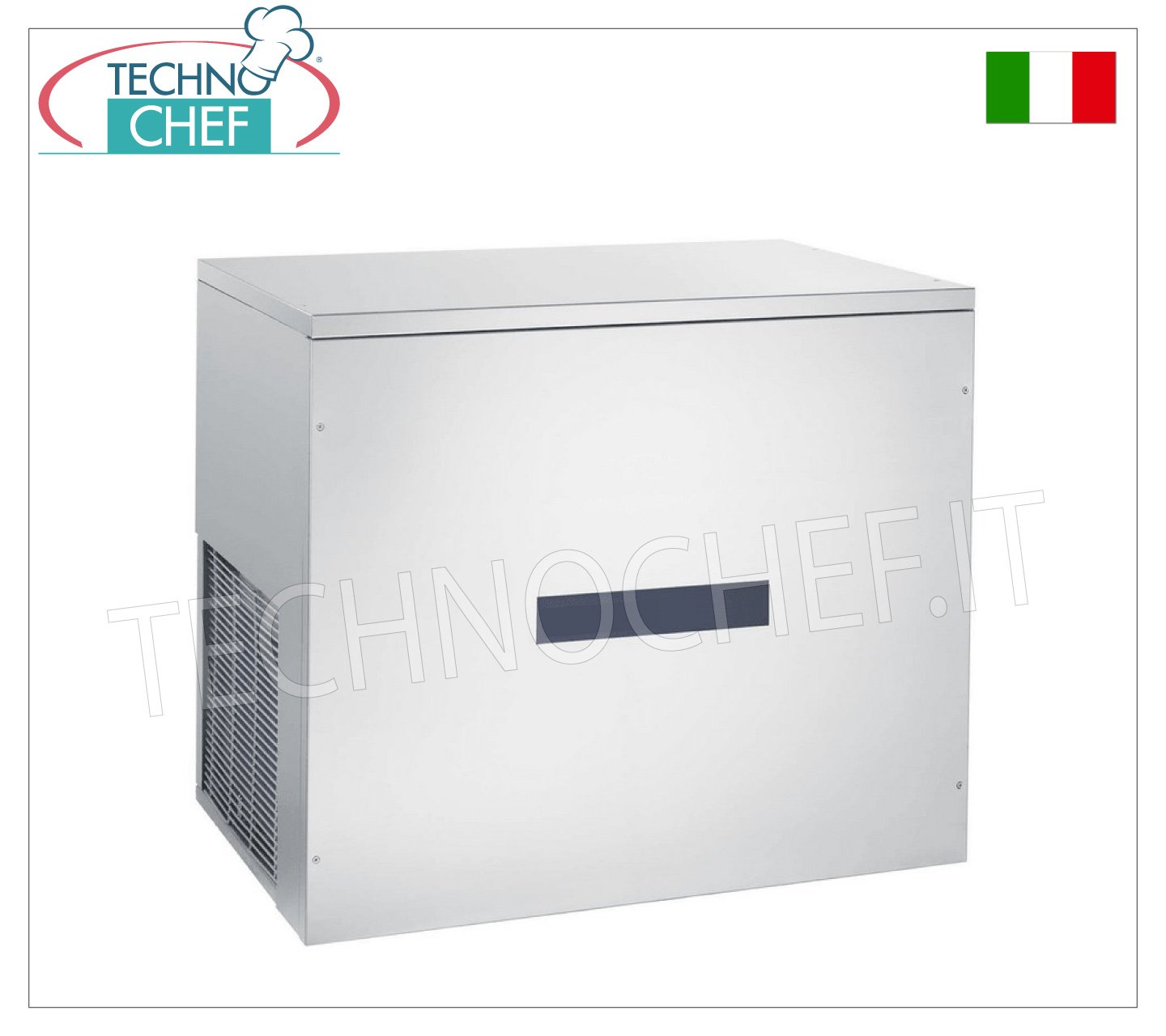

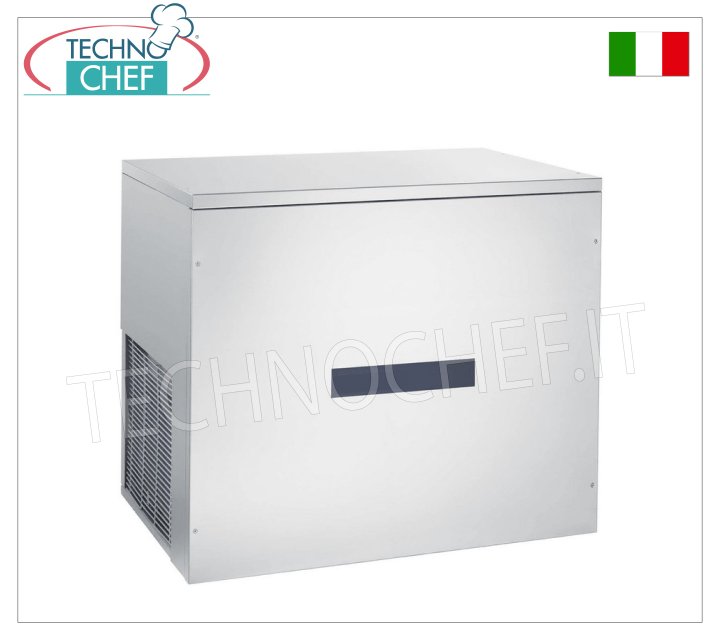

FULL CUBES ICE MAKER / MACHINE WITHOUT STORAGE, yield 300 Kg/24 h

ICE MAKER in FULL CUBES with SPRAY SYSTEM, WITHOUT DEPOSIT, yield 300 Kg / 24 hours :

.

• FULL CUBE : High density, crystalline and pure full cube. Suitable for prolonged cooling of any drink (without watering it down) in any situation of use.
• HORIZONTAL EVAPORATOR, SPRAY SYSTEM : The horizontal evaporator is made up of truncated cone-shaped copper bowls facing downwards. A pump sends pressurized water which, through nozzles, is sprayed onto the evaporator. Ice forms inside the bowls and is detached by heating them for a short time.
• BACK STAGE : Modular appliance to be used in combination with a large capacity store (container) to be installed generally in the back room (backstage): it is not seen but works hard producing ice continuously. Particularly suitable for restaurants, hotels, discos, fast foods. It represents a tireless producer that also satisfies seasonal and work peaks. Tropicalized model: it can be installed up to ambient temperatures of 43°C and using a water temperature of up to 32°C. Stainless steel body.

TECHNICAL DATA :

• Dimensions (LxDxH): 1255x595x860h mm
• Production in 24h (21°C – 15°C): 300 Kg
• Production per cycle: 216 ice cubes
• Ice type: Full cube 18 gr
• Cooling system: Air / Water
• Refrigerant type: R 290
• Standard voltage: 230 V~ 50 Hz
• Power consumption: 2700 W
• Cube dimensions (LxH):33x30 mm
• Net weight: 148 Kg
• Gross weight: 165.5 Kg

ACCESSORIES/OPTIONALS :

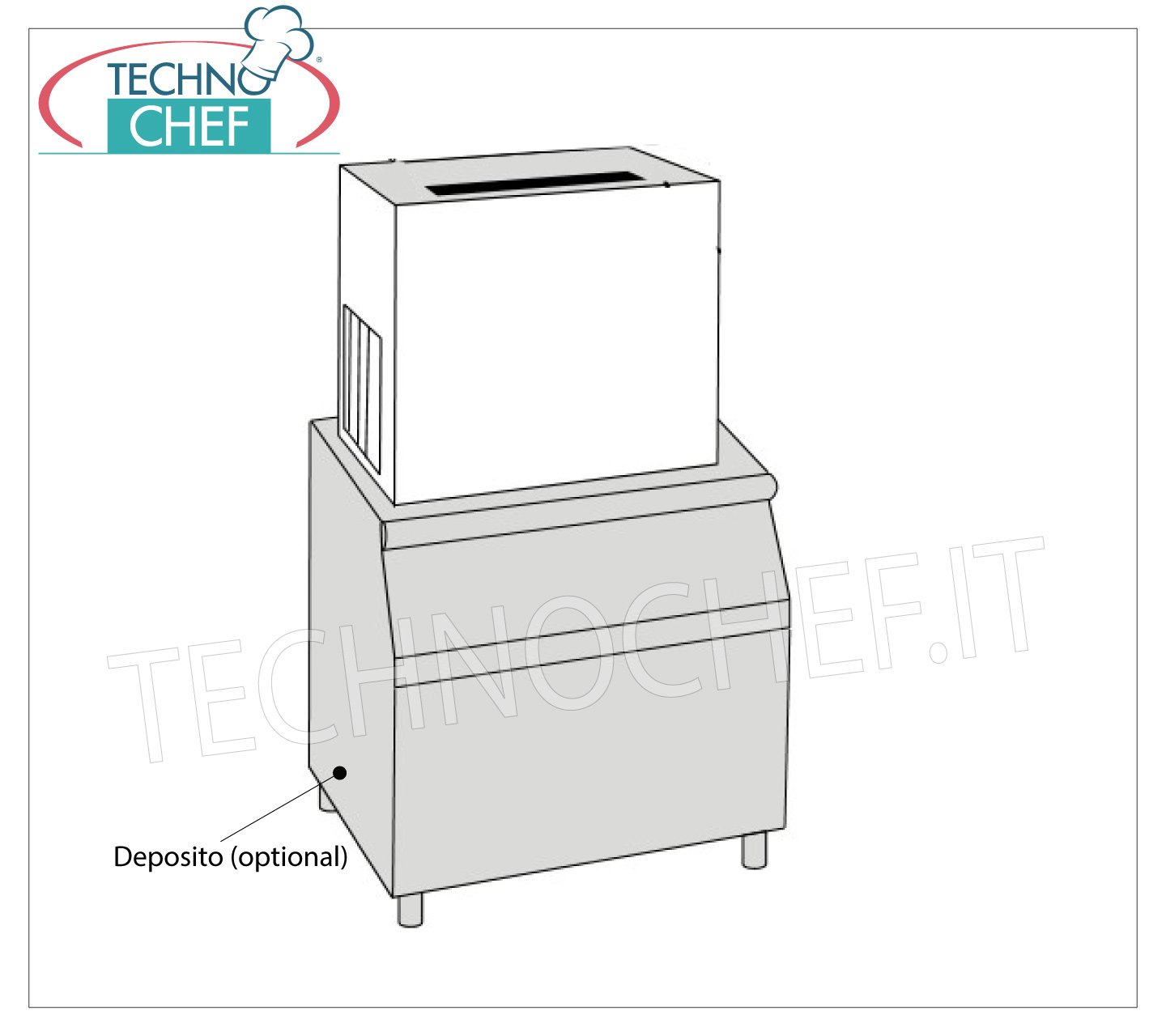

• Ice storage with storage capacity: 400 Kg

CE MARK

MADE IN ITALY
