You are here: Home page / Cooking equipment / Steam ovens / ELECTRIC CONVECTION-STEAM OVEN for GASTRONOMY, 10 GN1/1 TRAYS, ELECTROMECHANICAL CONTROLS
click to enlarge
+ Visualizza altre immagini

TCF312-000400

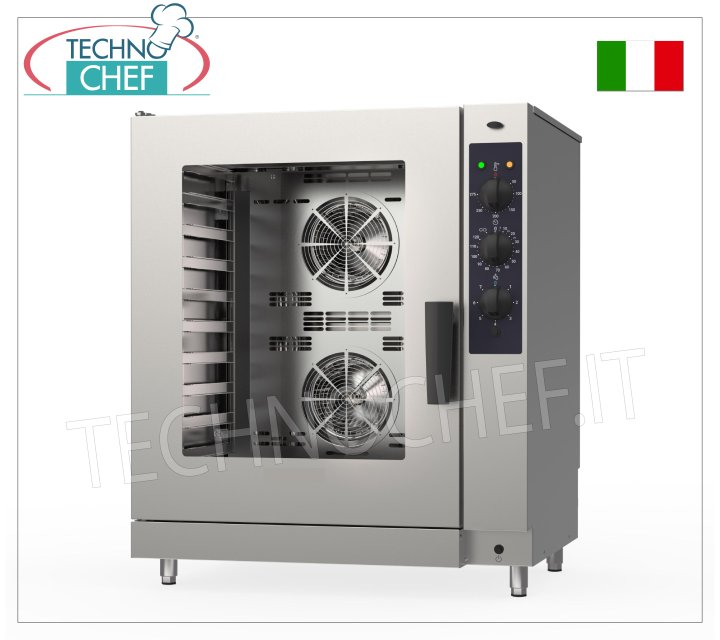

ELECTRIC CONVECTION-STEAM OVEN for GASTRONOMY, 10 GN1/1 TRAYS, ELECTROMECHANICAL CONTROLS

technical card
power supply
Trifase
Volts
V 400/3 +N
frequency (Hz)
50
motor power capacity (Kw)
16,5
net weight (Kg)
117
gross weight (Kg)
133
breadth (mm)
860
depth (mm)
720
height (mm)
1020

professional description

ELECTRIC CONVECTION-STEAM OVEN for GASTRONOMY with ELECTROMECHANICAL controls:

.

  • Electric combination oven, electromechanical control, 10 GN 1/1 trays with direct steam ;
  • Hermetically sealed and molded cooking chamber ;
  • Room lighting via LEDs installed in the door;
  • Cooking chamber in 1 mm thick AISI 304 stainless steel , with rounded corners to prevent dirt from settling, polished steel finish to improve heat refraction and reduce the roughness of the steel and avoid the effects of corrosion from chemicals and allow food residues to slip off;
  • Watertight door in AISI 304 , with high-performance and easy-to-replace gasket, equipped with 2 glasses: 4 mm thick external, 6 mm thick internal with reflective heat treatment for better energy efficiency. Air tunnel in the door for operator safety;
  • Non-slip and anti-fingerprint handle with right/left opening;

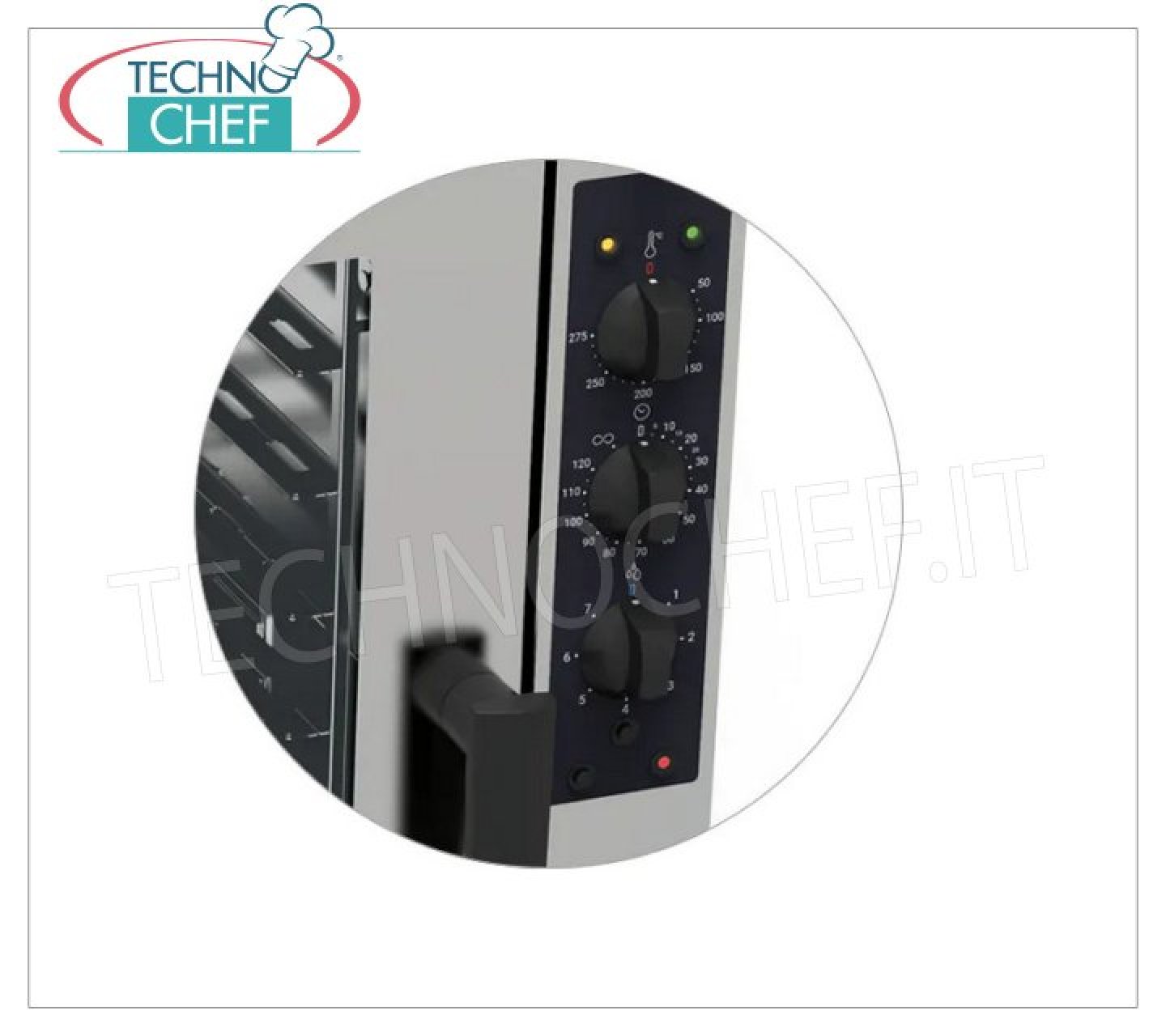

  • Intuitive and easy-to-use control panel : the first knob adjusts the
    temperature, the second regulates the cooking duration, the third is the selector to define the quantity of humidity to introduce into the chamber on 7 levels;
  • Professional fans are equipped with auto-reverse ;
  • Uniform cooking is ensured by the deflector designed for the best heat distribution in the chamber and by the well-spaced grids;
  • Manual vent opening ;
  • Cooking chamber well lit during oven operation;
  • External shower (optional).

TECHNICAL DATA:

  • electric power: 16.5 kW
  • capacity 10 Gastronorm 1/1 trays
  • maximum food load 50 kg
  • cooking chamber dimensions: 590x380x730 mm
  • guides: n°10
  • tray spacing: 65 mm
  • Thermal insulation thickness: 35 mm
  • temperature in the convection cycle: 50-275 C°
  • temperature in the mixed cycle: 50-275 C°
  • fan speed: 1
  • minute minder timer: 0-120 min
  • oven type: electromechanical - GN 1/1 tray

OPTIONAL/ACCESSORIES:

  • Base support for oven
  • Base support with oven tray holders

CE MARK

MADE IN ITALY

acquista
Code
Description
Price/Delivery
TCF312-000400
ELECTRIC CONVECTION-STEAM OVEN for GASTRONOMY, capacity 10 GASTRONORM 1/1 TRAYS, version with ELECTROMECHANICAL CONTROLS, V.400/3+N, Kw. 16.5, weight 133 Kg, Dim. mm. 860x720x1020h
€ 3.337,53
VAT escluded
Shipping to be calculed
Delivery from 8 to 15 days
technical card
Code/pictures
Description
Price/Delivery
TCF312-000201
Technochef - Oven Base for 6 and 10 GN1/1 Trays
€ 384,34
VAT escluded
Shipping to be calculed
Delivery from 4 to 9 days
