You are here: Home page / Cold storage rooms and refrigerators / Blast chillers / Professional blast chiller, 3 TRAYS GN 2/3, ATTILA Line, mod.ATT02
click to enlarge
+ Visualizza altre immagini

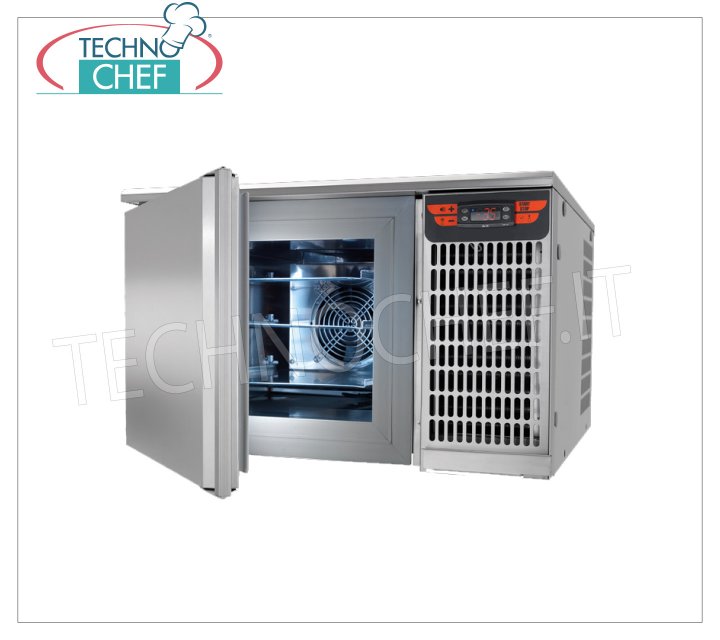

Professional blast chiller, 3 TRAYS GN 2/3, ATTILA Line, mod.ATT02

TD-ATT02

TEMPERATURE BLAST CHILLER-FREEZER with 340x363x270h mm CHAMBER, for 3 GRIDS/TRAYS Gastro-Norm 2/3, core probe, POSITIVE CYCLE yield +70°/+3° Kg.9, NEGATIVE CYCLE yield +70°/-40 ° Kg.7, V.230/1, Kw.0,52, Weight 45Kg, dim.mm.658x630x420h
acquista
Code
Description
Price/Delivery
TD-ATT02
TEMPERATURE BLAST CHILLER-FREEZER with 340x363x270h mm CHAMBER, for 3 GRIDS/TRAYS Gastro-Norm 2/3, core probe, POSITIVE CYCLE yield +70°/+3° Kg.9, NEGATIVE CYCLE yield +70°/-40 ° Kg.7, V.230/1, Kw.0,52, Weight 45Kg, dim.mm.658x630x420h
€ 1.258,88
VAT escluded
Shipping to be calculed
Delivery from 8 to 15 days

professional description

SUPER POWERFUL and SUPER COMPACT blast chiller with GUIDES for 3 GRIDS/TRAYS Gastro-Norm 2/3 (mm.354x325), TECNODOM brand :


  • Internal and external in Stainless Steel , with the exception of the external bottom in Galvanized Steel;
  • Rounded internal corners;
  • CFC-free polyurethane insulation, injected under high pressure;
  • Removable top, door with automatic closure and magnetic seal;
  • Front panel with electronic control board with chamber probe and core needle probe ;
  • Ventilated refrigeration with air agitator;
  • Easily removable and tropicalised refrigeration unit as standard (ambient temperature +43°C and relative humidity of 65%);
  • Evaporator defrosting by time , at the end of the cycle, and lower condensed water containment tray;
  • Cycles settable with core probe +3°C and -18°C , or by time;
  • Power is guaranteed by a unit capable of bringing a temperature of -40°C into the chamber in a few minutes ;
  • Guides suitable for holding 3 standard GN 2/3 grids or trays (354x325mm);
  • Pitch between guides mm 80 ;
  • Chamber dimensions mm 340x363x270h ;
  • Yield: positive cycle +70°+3°C -- Kg.9 ,
  • Yield: negative cycle +70°- 40°C -- Kg.7 ;
  • Digital control panel allows you to set various parameters to meet any need;
  • Insulation thickness 60 mm ;
  • Thanks to its small size, it can also be placed on a workbench or refrigerated;
  • Feet in stainless steel adjustable in height (60/90 H mm).



NB: Trays and Grids NOT INCLUDED

Included :

  • Chamber probe
  • Needle probe
  • 3 pairs of guides




Accessories/Options :

  • Aluminum tray GN 2/3 (mm 354x325)


CE MARK

MADE IN ITALY

technical card
power supply
Monofase
Volts
V 230/1
frequency (Hz)
50
motor power capacity (Kw)
0,52
net weight (Kg)
45
gross weight (Kg)
56
breadth (mm)
658
depth (mm)
630
height (mm)
420

professional description

SUPER POWERFUL and SUPER COMPACT blast chiller with GUIDES for 3 GRIDS/TRAYS Gastro-Norm 2/3 (mm.354x325), TECNODOM brand :


  • Internal and external in Stainless Steel , with the exception of the external bottom in Galvanized Steel;
  • Rounded internal corners;
  • CFC-free polyurethane insulation, injected under high pressure;
  • Removable top, door with automatic closure and magnetic seal;
  • Front panel with electronic control board with chamber probe and core needle probe ;
  • Ventilated refrigeration with air agitator;
  • Easily removable and tropicalised refrigeration unit as standard (ambient temperature +43°C and relative humidity of 65%);
  • Evaporator defrosting by time , at the end of the cycle, and lower condensed water containment tray;
  • Cycles settable with core probe +3°C and -18°C , or by time;
  • Power is guaranteed by a unit capable of bringing a temperature of -40°C into the chamber in a few minutes ;
  • Guides suitable for holding 3 standard GN 2/3 grids or trays (354x325mm);
  • Pitch between guides mm 80 ;
  • Chamber dimensions mm 340x363x270h ;
  • Yield: positive cycle +70°+3°C -- Kg.9 ,
  • Yield: negative cycle +70°- 40°C -- Kg.7 ;
  • Digital control panel allows you to set various parameters to meet any need;
  • Insulation thickness 60 mm ;
  • Thanks to its small size, it can also be placed on a workbench or refrigerated;
  • Feet in stainless steel adjustable in height (60/90 H mm).



NB: Trays and Grids NOT INCLUDED

Included :

  • Chamber probe
  • Needle probe
  • 3 pairs of guides




Accessories/Options :

  • Aluminum tray GN 2/3 (mm 354x325)


CE MARK

MADE IN ITALY

technical card
Code/pictures
Description
Price/Delivery
TD-AB2S30049
ALUMINUM TRAY GN 2/3
Aluminum tray GN 2/3 (354x325 mm), for the ATT02 model
€ 16,89
VAT escluded
Shipping to be calculed
Delivery from 4 to 9 days

You may also be interested in

This is a selection of products you may be interested in

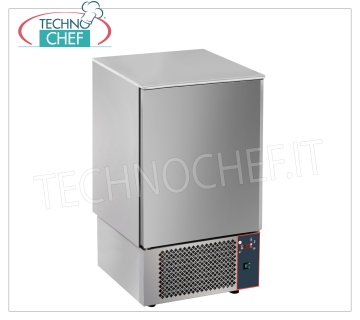

ENHANCED BLAST CHILLER-FREEZER with UNIVERSAL GUIDES for 10 GN 1/1 or mm. 600x400, TECNODOM brand complete with NEEDLE PROBE, yield POSITIVE CYCLE + 90 ° + 3 ° C / Kg. 35, NEGATIVE CYCLE + 90 ° -18 ° / Kg. 20, with REFRIGERANT UNIT ON BOARD, V.230 / 1 , Kw.1,6, Weight Kg. 117, dim.mm.750x740x1300h
