You are here: Home page / Cold storage rooms and refrigerators / Blast chillers / TECNODOM - Blast Chiller for 3 GN 1/1 Trays (325x530 mm) or Pastry Trays 600x400 mm
Promoted item

TD-ATT03

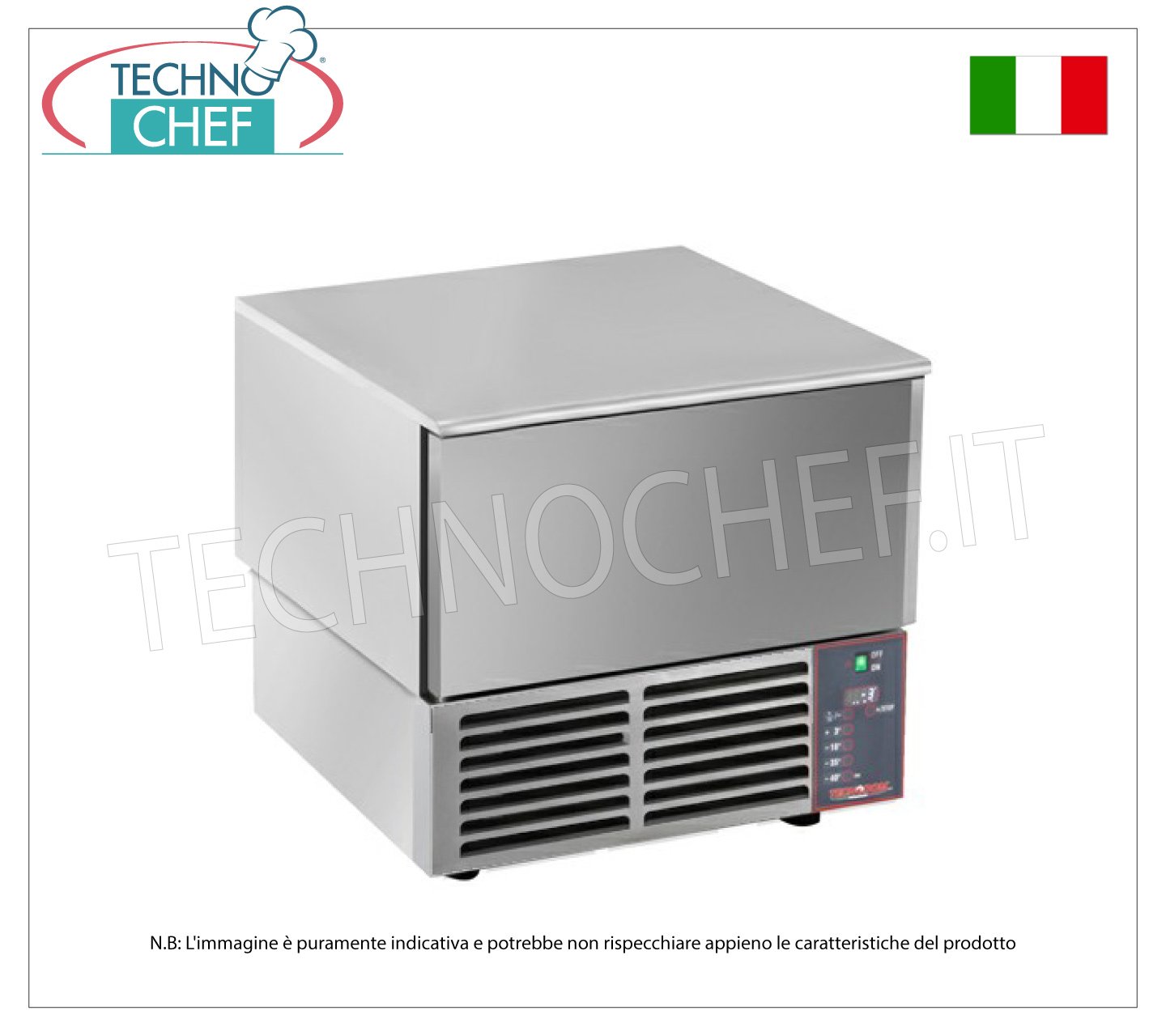

TECNODOM - Blast Chiller for 3 GN 1/1 Trays (325x530 mm) or Pastry Trays 600x400 mm

Complete with PIN PROBE, POSITIVE CYCLE output +90°+3° Kg.15 , NEGATIVE CYCLE +90°-18° Kg.9, - V 230/1, Kw 1.15 - dim mm. 750x740x740h

technical card
power supply
Monofase
Volts
V 220/1
frequency (Hz)
50

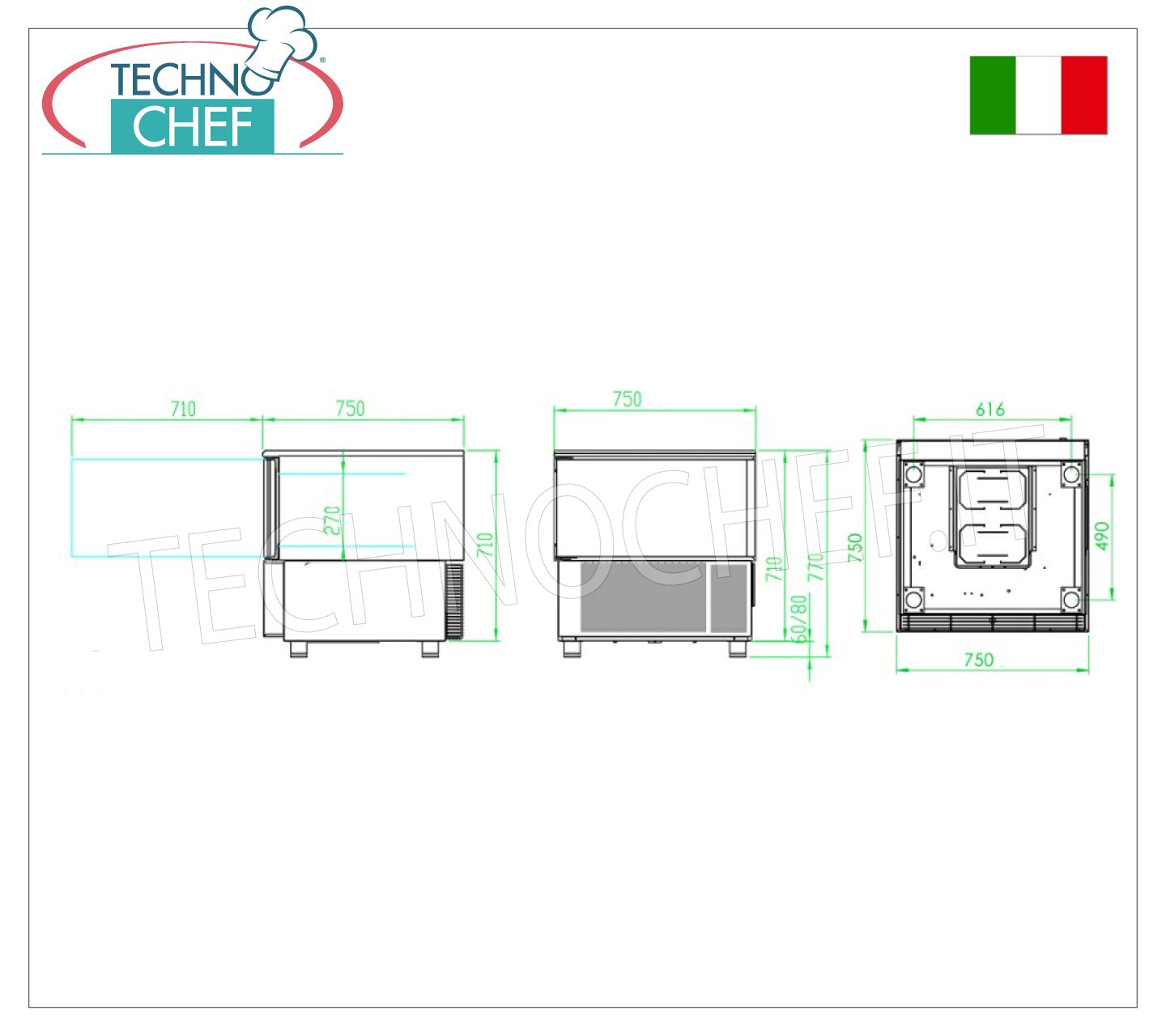

breadth (mm)
750
depth (mm)
740
height (mm)
750

professional description

BLAST CHILLER-FREEZER with UNIVERSAL GUIDES for 3 gastro-norm 1/1 or 600x400 mm GRIDS/TRAYS, TECNODOM brand:


  • internal and external structure made of stainless steel ;
  • rounded internal corners;
  • CFC-free polyurethane insulation , injected at high pressure;
  • insulation thickness : 60 mm ;
  • chamber dimensions mm 610x410x280h;
  • removable top;
  • door with self-closing and magnetic seal ;

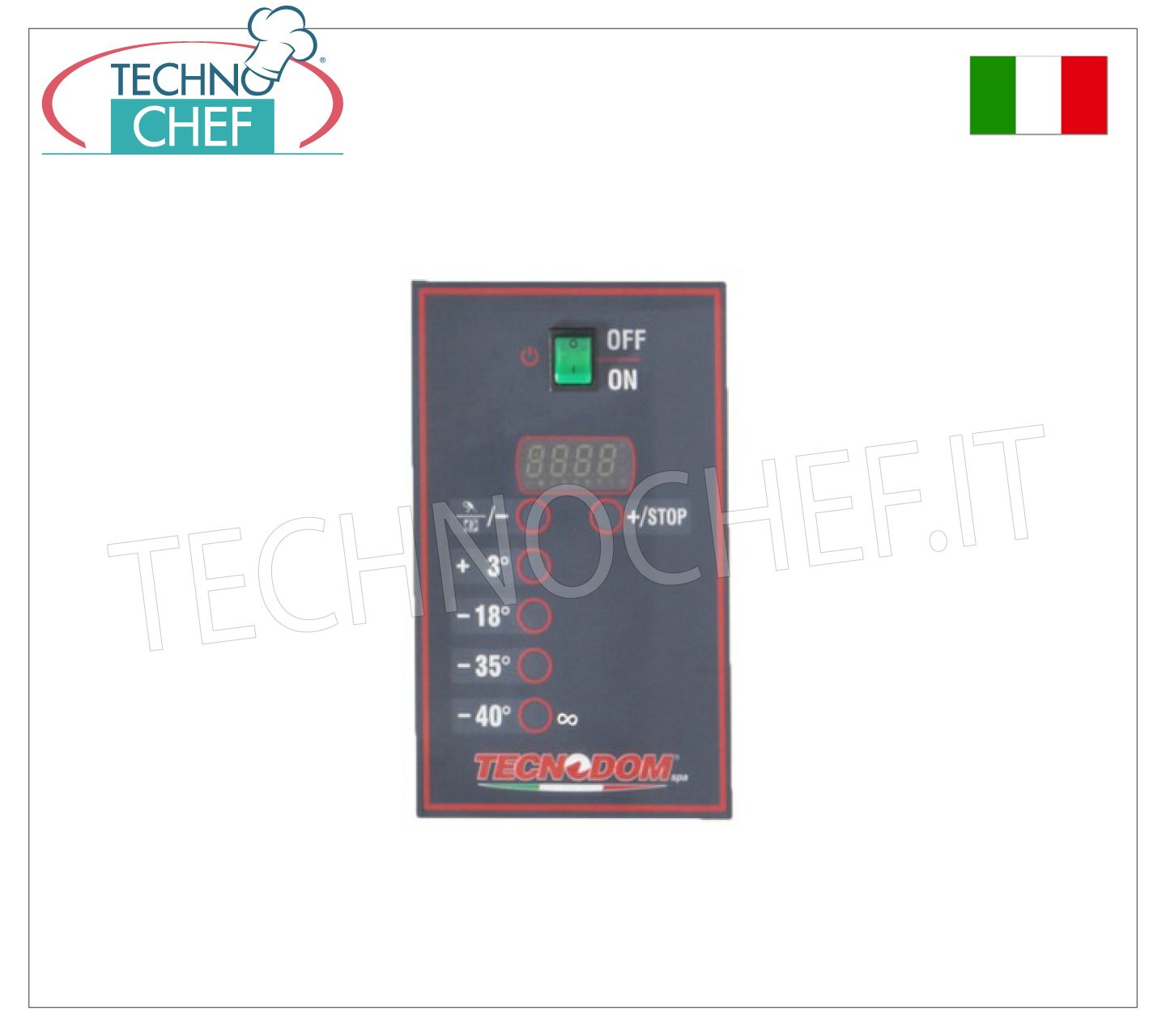

  • front panel with electronic control board with chamber probe and core probe ;
  • ventilated refrigeration with air agitator ;
  • easily removable and tropicalized refrigeration unit as standard (ambient temperature +43°C and relative humidity of 65%) operating with R404A/R507 gas;
  • yield POSITIVE CYCLE +90°+3° Kg. 15, NEGATIVE CYCLE +90°-18° Kg. 9;
  • opening rear compartment and removable unit , for easy maintenance ;
  • evaporator defrosting by time, at the end of the cycle, and lower tray for containing condensation water;
  • Height- adjustable stainless steel feet (60/90 H mm)

Included :

  • Chamber probe, core probe and n. 6 universal steel guides.

Accessories/Optional :

  • universal steel guides - Cod.TD-GUABB.
  • Gastro-Norm 1/1 plasticized grid (mm.530x325) - Cod.TD-GRPLTGN.
  • kit 2 wheels with brake and 2 wheels without brake - Cod-TD-RUOABB.

BRAND

MADE IN ITALY

acquista
Available models
TD-ATT03
BLAST CHILLER-FREEZER with UNIVERSAL GUIDES for 3 gastro-norm 1/1 or 600x400 mm TRAYS, TECNODOM brand, with PIN PROBE, POSITIVE CYCLE output +90°+3° Kg.15, NEGATIVE CYCLE +90°-18° Kg.9, V.230/1, Kw.1.15, Weight Kg.82, dim.mm.750x740x750/780h
€ 1.519,05VAT escluded € 1.260,81
VAT escluded
Shipping to be calculed
Delivery from 8 to 15 days
