You are here: Home page / Cold storage rooms and refrigerators / wine coolers / Wooden refrigerated wine cabinets / CELLAR-CASES for WINE, capacity 42 bottles Inclined, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION
click to enlarge
+ Visualizza altre immagini

EO-TV-M22-RAL9005

CELLAR-CASES for WINE, capacity 42 bottles Inclined, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION

SLIDING DOORS on 1 Front, suitable for WHITE and RED WINES, Configurable in USE: VENTILATED or STATIC MULTI-TEMPERATURE , Adjustable temperature from: +4° to +16° C. - Set-ups with CHOICE OF FRAMES , V.230/1, Kw. 0.42, weight 66 kg, dim.mm.860x530x900h

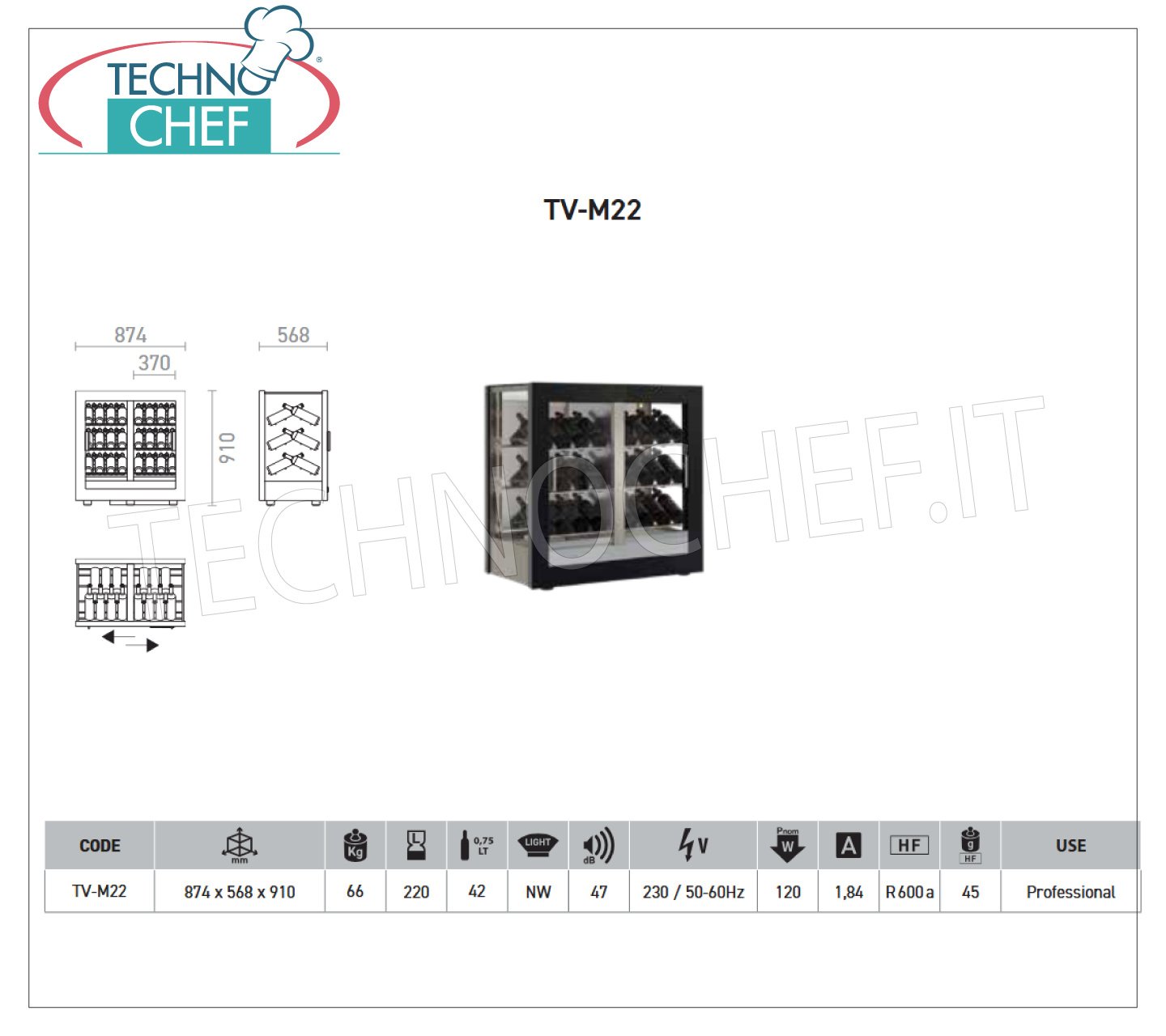

technical card
power supply
Monofase
Volts
V 230/1
frequency (Hz)
50
motor power capacity (Kw)
0,42
net weight (Kg)
66
breadth (mm)
860
depth (mm)
530
height (mm)
900

professional description

CELLAR-CASES for WINE, Capacity 42 Tilted Bottles, STATIC or VENTILATED REFRIGERATION, suitable for WHITE or RED WINES:

.

  • aluminum structure ,
  • interior in Aluminium,
  • sliding doors, sides and top in double glazing ,
  • ECOLGICO refrigeration unit with GAS R 600a ,
  • digital thermoregulator from: +4°+16°C ,
  • automatic defrost , automatic condensation evaporation,
  • innovative refrigeration system based on the positioning of the cooling coil in the center of the display case which guarantees better conservation conditions ,
  • SLIDING glass DOORS on 1 SIDE ,
  • anti-fog system doors ;
  • natural white LED lighting on the pillars,
  • key lock,
  • anti-vibration system ,
  • Ambient Temperature: +25°, MAX for WHITE WINES
  • Ambient Temperature: +30°, MAX for RED WINES


.

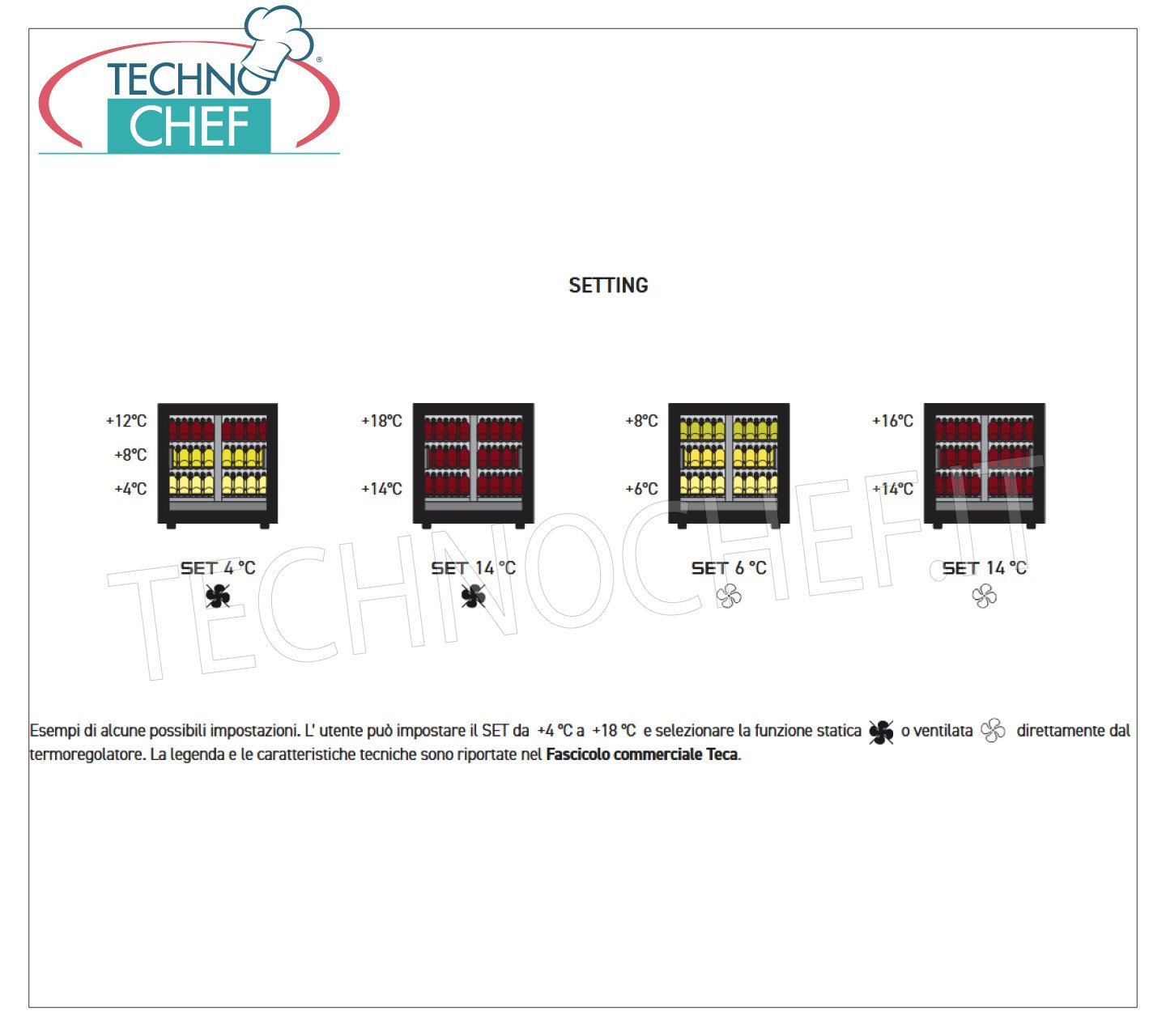

4 POSSIBILITIES OF USE CONFIGURABLE by the Customer

.

- STATIC MULTI-TEMPERATURE from +4° to +16°C for WHITE and RED wines,
- STATIC MULTI-TEMPERATURE from +14° to +20°C for RED wines,
- VENTILATED for RED Wines with adjustable temperature from +14° to + 16°C,
- VENTILATED for WHITE wines with adjustable temperature from +4° to +6°C;.


.

Possibility of EQUIPMENTS, to be selected at the TIME of the Order within the PRODUCT SHEET.

.

- FRAME in RAW MDF, - MATT WHITE RAL-9010, - MATT BLACK RAL-9005, - GOLD VO1, SILVER VO2, - RAL 20 COLORS MATT LACQUERED, RAL 100 COLORS GLOSS LACQUERED


.


OPTIONAL/ACCESSORIES:

  • Colored LED lighting on the uprights with remote control

.

CE mark

Made in Italy

acquista
Available models
EO-TV-M22-M01
WINE CASE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with RAW MDF WOOD FRAME
€ 3.963,18
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-RAL9010
CASE for WINE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in MATT WHITE color
€ 3.997,06
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-RAL9005
CASE for WINE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in MATT BLACK color
€ 3.997,06
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-V01
CASE for WINE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with GOLD painted WOODEN FRAME
€ 4.335,79
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-V02
CASE for WINE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with SILVER painted WOODEN FRAME
€ 4.335,79
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-RAL20
CASE for WINE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in RAL20 colors
€ 4.335,79
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M22-RAL100
WINE CASE, 42 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in RAL100 colors
€ 4.335,79
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
technical card
Code/pictures
Description
Price/Delivery
EO-OPT-RGB-D
Colored LED lighting with remote control
€ 153,55
VAT escluded
Shipping to be calculed
Delivery from 4 to 9 days
