You are here: Home page / Cold storage rooms and refrigerators / wine coolers / Wooden refrigerated wine cabinets / WINE CELLAR-CAPACITY 64 bottles Vertical, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION
click to enlarge
+ Visualizza altre immagini

EO-TV-M23-RAL9005

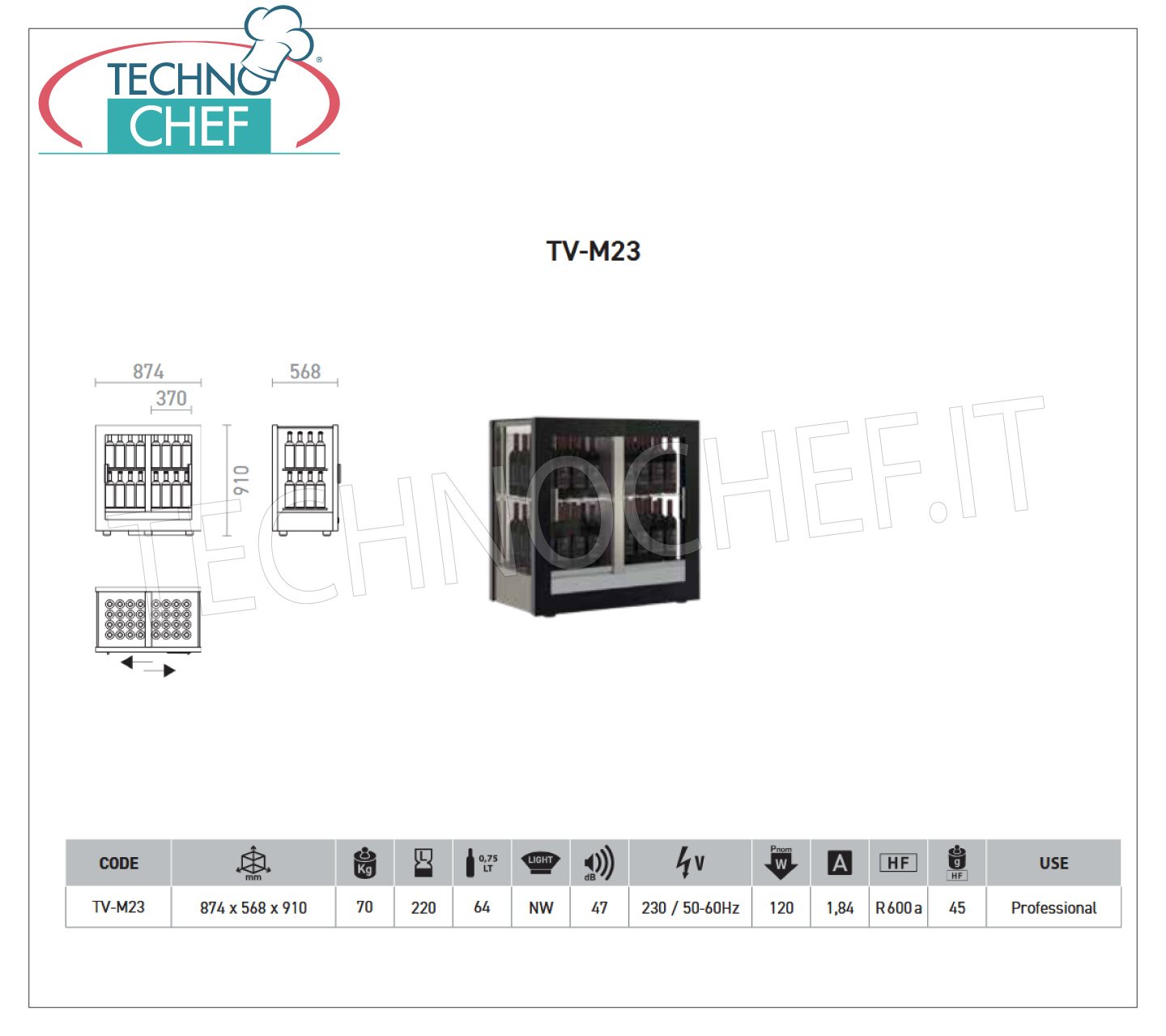

WINE CELLAR-CAPACITY 64 bottles Vertical, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION

SLIDING DOORS on 1 Front, Suitable for WHITE and RED WINES, Configurable in USE: VENTILATED or STATIC MULTI-TEMPERATURE, Adjustable temperature from: +4° to +16° C. - Set-ups with CHOICE OF FRAMES, V.230/1, Kw. 0.42, weight 70 kg, dim.mm.860x530x900h

technical card
power supply
Monofase
Volts
V 230/1
frequency (Hz)
50
motor power capacity (Kw)
0,42
net weight (Kg)
70
breadth (mm)
860
depth (mm)
530
height (mm)
900

professional description

CELLAR-CASES for WINE, Capacity 64 Vertical Bottles, STATIC or VENTILATED REFRIGERATION, suitable for WHITE or RED WINES:


.

  • aluminum structure ,
  • interior in Aluminium,
  • sliding doors, sides and top in double glazing ,
  • ECOLGICO refrigeration unit with GAS R 600a
  • digital thermoregulator from: +4°+16°C .
  • automatic defrost , automatic condensation evaporation,
  • innovative refrigeration system based on the positioning of the cooling coil in the center of the display case which guarantees better conservation conditions ,
  • SLIDING glass DOORS on 1 FRONT ,
  • anti-fog system doors ;
  • natural white LED lighting on the uprights ,
  • key lock ,
  • anti-vibration system ,
  • Ambient Temperature: +25°, MAX for WHITE WINES
  • Ambient Temperature: +30°, MAX for RED WINES

.

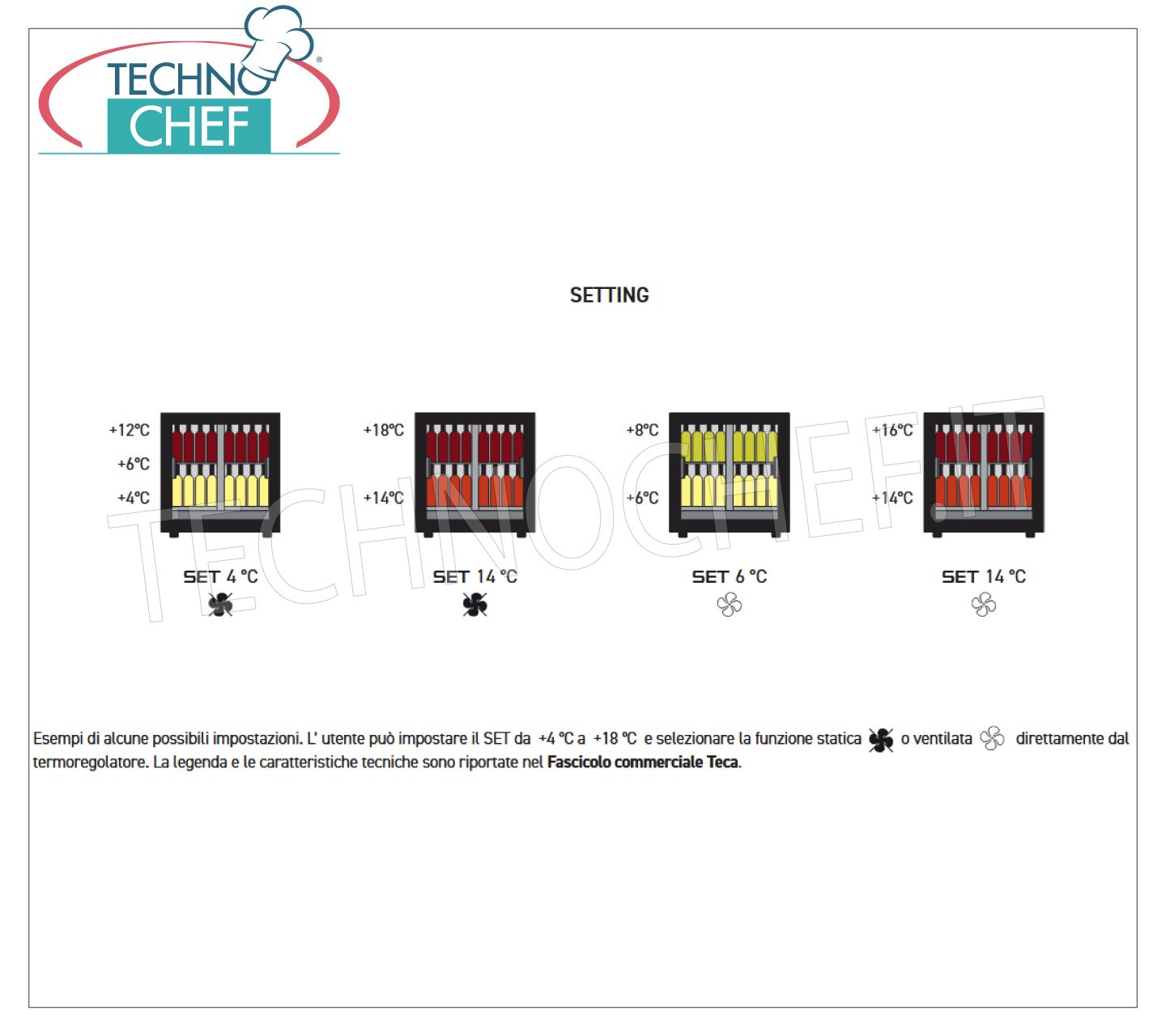

4 POSSIBILITIES OF USE CONFIGURABLE by the Customer
.

- STATIC MULTI-TEMPERATURE from +4° to +16°C for WHITE and RED wines ,

- STATIC MULTI-TEMPERATURE from +14° to +20°C for ROSS I wines ,

- VENTILATED for RED Wines with adjustable temperature from +14° to + 16° C ,

- VENTILATED for WHITE wines with adjustable temperature from +4° to +6° C;


.

Possible EQUIPMENTS, to be selected at the TIME of the Order in the PRODUCT SHEET .

.

- FRAME in RAW MDF , - MATT WHITE RAL-9010, - MATT BLACK RAL-9005, - GOLD VO1, SILVER VO2, - RAL 20 COLORS MATT LACQUERED, RAL 100 COLORS GLOSS LACQUERED


.

OPTIONAL/ACCESSORIES:

  • Colored LED lighting on the uprights with remote control

.

CE mark

Made in Italy

acquista
Available models
EO-TV-M23-M01
CASE for WINE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with RAW MDF WOOD FRAME
€ 3.759,94
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-RAL9010
WINE CASE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in MATT WHITE color
€ 3.793,82
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-RAL9005
CASE for WINE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in MATT BLACK color
€ 3.793,82
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-V01
CASE for WINE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with GOLD painted WOODEN FRAME
€ 4.132,55
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-V02
CASE for WINE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with SILVER painted WOODEN FRAME
€ 4.132,55
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-RAL20
WINE CASE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in RAL20 colors
€ 4.132,55
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-M23-RAL100
WINE CASE, 64 Bottles, Doors on 1 Front, 3 Glass Sides, Version with WOODEN FRAME in RAL100 colors
€ 4.132,55
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
