You are here: Home page / Cold storage rooms and refrigerators / wine coolers / Wooden refrigerated wine cabinets / WINE CELLAR-TECA capacity 120 bottles Horizontal, Static-Ventilated, 4 Glass Sides for CENTRAL INSTALLATION
click to enlarge
+ Visualizza altre immagini

EO-TV-C10-RAL9005

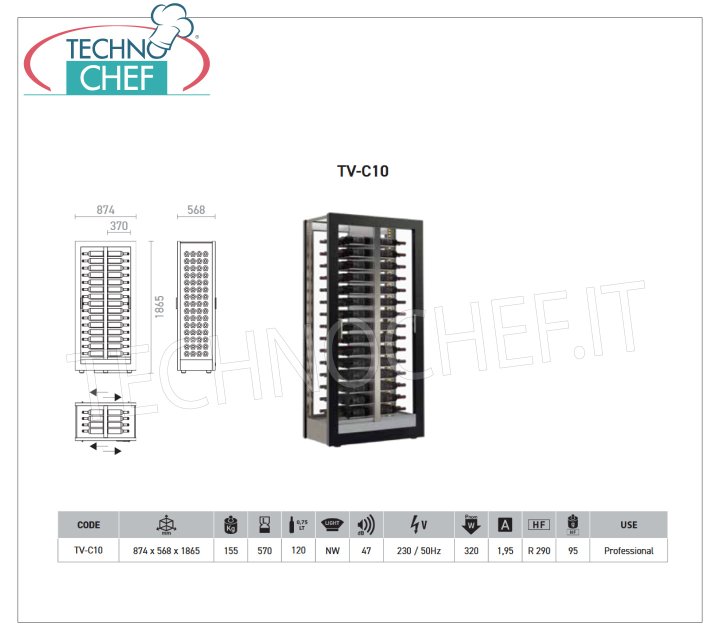

WINE CELLAR-TECA capacity 120 bottles Horizontal, Static-Ventilated, 4 Glass Sides for CENTRAL INSTALLATION

SLIDING DOORS on 2 Fronts, suitable for WHITE and RED WINES, Configurable by USER: VENTILATED or STATIC MULTITEMPERATURE , Adjustable temperature from: +4° to +16° C. - Setups with FRAMES of your choice , V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h

technical card
power supply
Monofase
Volts
V 230/1
frequency (Hz)
50
net weight (Kg)
155
breadth (mm)
874
depth (mm)
568
height (mm)
1865

professional description

WINE CELLAR-TECA, Capacity 120 Horizontal Bottles, STATIC or VENTILATED REFRIGERATION, suitable for WHITE or RED WINES:

.

  • Aluminum structure,
  • Interior in Aluminum,
  • Sliding Doors, Sides and Tops in DOUBLE GLASS,
  • ECOLGICO Refrigeration Group with R 290a GAS
  • digital thermoregulator from : +4°+16°C.
  • automatic defrosting,
  • automatic evaporation of condensation,
  • innovative refrigeration system based on the positioning of the cooling coil in the centre of the display case which guarantees better storage conditions,
  • SLIDING GLASS DOORS on 2 FACES,
  • anti-fog system for doors;
  • natural white LED lighting on the uprights,
  • key lock ,
  • Anti-Vibration System,
  • Room Temperature: +25°, MAX for WHITE WINES
  • Ambient Temperature: +30°, MAX for RED WINES

.

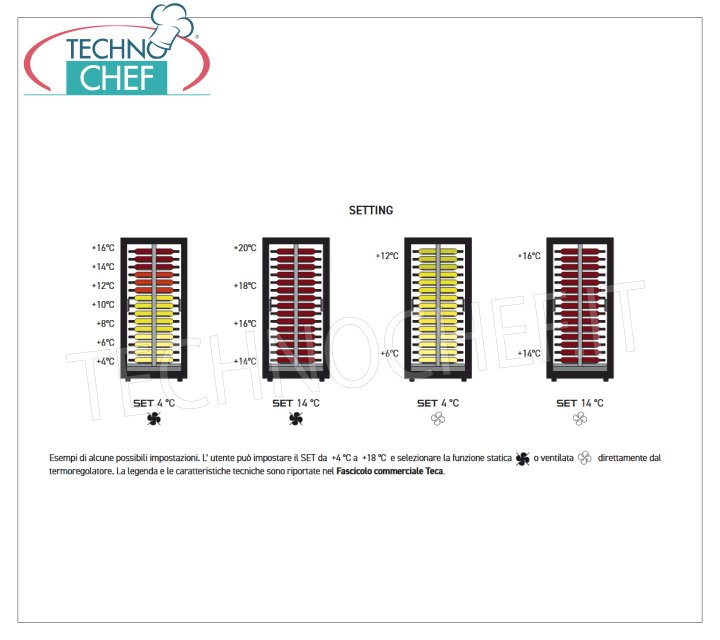

4 POSSIBLE USE POSSIBILITIES CONFIGURABLE by the Customer

.

- MULTI-TEMPERATURE STATIC from +4° to +16°C for WHITE and RED wines,

- MULTI-TEMPERATURE STATIC from +14° to +20°C for RED WINES,

- VENTILATED for RED wines with adjustable temperature from +14° to +16°C,

- VENTILATED for WHITE wines with adjustable temperature from +6° to +12°C;

.

Possible INSTALLATIONS, to be selected at the TIME of the Order within the PRODUCT SHEET.

.

- MDF FRAME

RAW, - MATT WHITE RAL-9010, - MATT BLACK RAL-9005, - GOLD VO1, SILVER VO2, - RAL 20 COLOURS MATT LACQUERED, RAL 100 COLOURS GLOSSY LACQUERED

.

DUNE FRAMES

RAW, - MATT WHITE RAL9010, - MATT BLACK RAL9005, - GOLD VO1 - SILVER VO2 - RAL20 COLOURS MATT LACQUERED, RAL100 COLOURS GLOSSY LACQUERED;

.

      OPTIONAL/ACCESSORIES:

      • Coloured LED lighting on the uprights with remote control .

      .

      CE mark

      Made in ITALY

      acquista
      Available models
      EO-TV-C10-M01
      WINE CABINET with RAW MDF WOOD FRAME, with GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 5.622,98
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-RAL9010
      WINE CABINET with MATT WHITE WOOD FRAME, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 5.724,60
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-RAL9005
      WINE CABINET with MATT BLACK WOOD FRAME, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 5.724,60
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-V01
      WINE CABINET with GOLD painted WOOD FRAME, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865
      € 6.063,33
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-V02
      WINE CABINET with FRAME in SILVER painted WOOD, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.063,33
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-RAL20
      WINE CABINET with WOODEN FRAME in RAL20 colours, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp.4+°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.063,33
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-RAL100
      WINE CABINET with WOODEN FRAME in RAL100 colours, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.063,33
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-D01
      WINE CABINET with DUNE FRAME in RAW WOOD, with GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.300,44
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DRAL9010
      WINE CABINET with DUNE FRAME in MATT WHITE WOOD, GLASS ON ALL SIDES, cap 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.402,06
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DRAL9005
      WINE CABINET with DUNE FRAME in MATT BLACK WOOD, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.402,06
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DV02
      WINE CABINET with DUNE FRAME in SILVER WOOD, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.639,18
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DV01
      WINE CABINET with DUNE FRAME in GOLD painted WOOD, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.639,18
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DRAL20
      WINE CABINET with DUNE FRAME in RAL20 colours, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.910,16
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      EO-TV-C10-DRAL100
      WINE CABINET with DUNE FRAME in RAL100 colours, GLASS ON ALL SIDES, capacity 120 HORIZONTAL bottles, STATIC or VENTILATED cold, temp. +4°/+16°C, for WHITE or RED WINES, doors on 2 fronts, V.230/1, Kw.0.32, Weight 155 Kg, dim.mm.874x568x1865h
      € 6.910,16
      VAT escluded
      Shipping to be calculed
      Delivery from 10 to 18 days
      technical card
      Code/pictures
      Description
      Price/Delivery
      EO-OPT-RGB-A
      Colored LED lighting with remote control
      € 153,55
      VAT escluded
      Shipping to be calculed
      Delivery from 4 to 9 days
