TECHNOCHEF - Hood dishwasher, digital controls, max 60 baskets/hour

DISHWASHER with LIFTING HOOD with 500x500mm QUADRO rack, max output of 60 racks/hour, DIGITAL CONTROLS :

.

• The bodywork is entirely made of AISI 304 steel and has been designed with all the components in the front part to allow easy assistance by the technician;
• Digital electronic controls with display;
• The electronic control allows you to manage various parameters to give you a great level of customization based on your needs,
• 4 wash cycles of 60/90/120/240 seconds ;
• Max useful height : plates 415 mm .
• Max pot height 390 mm .,
• Max height of glasses 390 mm,
• 40 liter bread baskets (H=390),

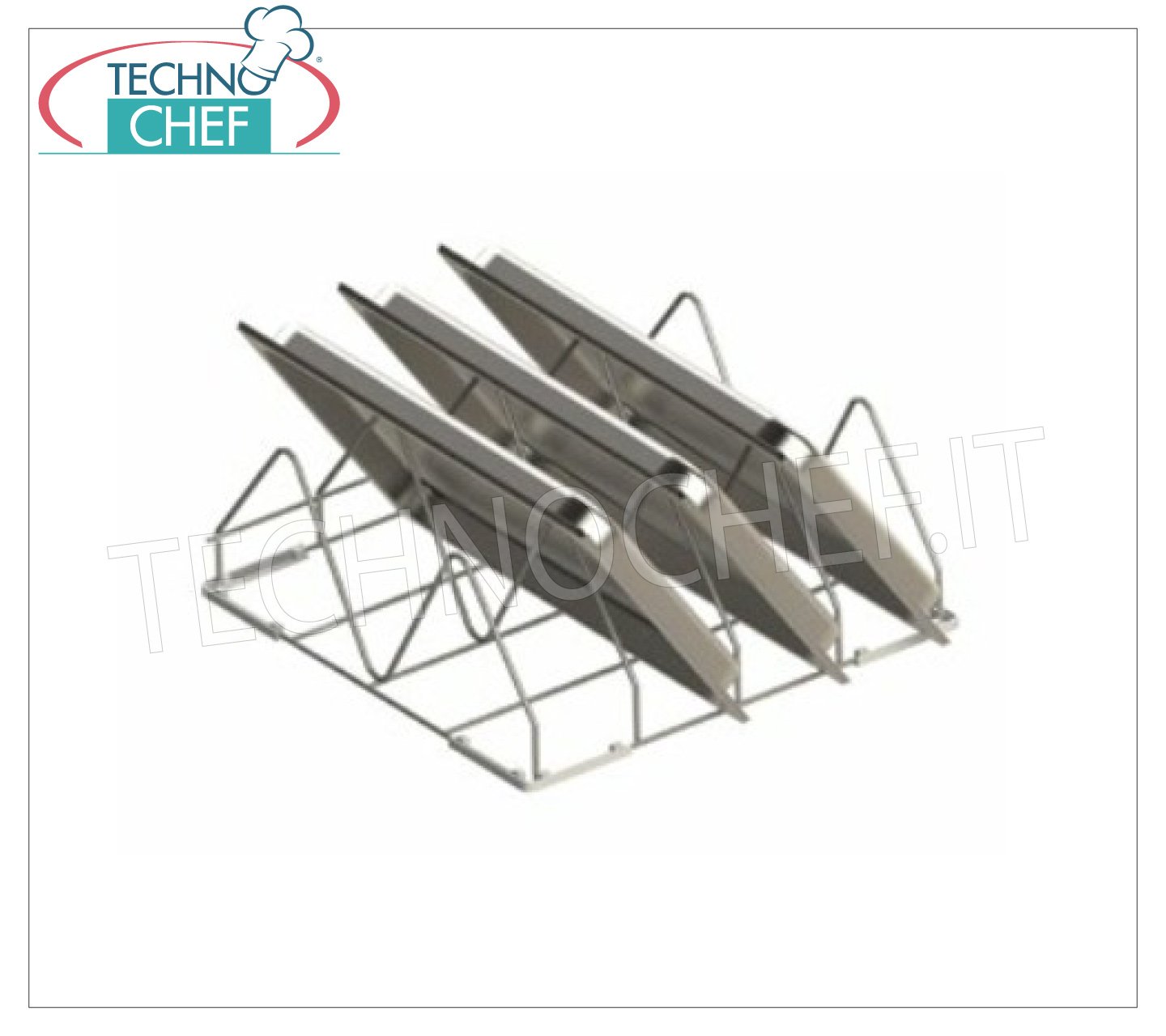

• Suitable for holding 4 GN 1/1 trays;
• Capable of washing glasses, plates, medium-sized objects and GN 1/1 trays in just 620 mm of width, guaranteeing a maximum productivity of 60 baskets/hour (1080 plates/hour),
• Stainless steel washing impellers diameter 18 mm. with molded helical castings;
• Stainless steel rinse impeller with adjustable rotation speed;
• Adjustable electric rinse aid dispenser ;
• Adjustable electric washing detergent dispenser :
• Control system via electronic card with simple and extremely efficient Dip-Switch ,
• Setting and control of washing and rinsing temperatures ,
• The electronic control allows you to manage various parameters to give you a great level of customization based on your needs while the self-diagnosis allows you to reduce machine downtime to a minimum by already suggesting some simple operations to perform to resolve the situation,
• Setting and control of the washing and rinsing thermostop to guarantee excellent washing results,
• Display showing temperatures and selected wash cycle ,
• Intelligent Start button ,
• Self-diagnosis system ,
• Scheduled Maintenance Notice ,
• Automatic additional rinse cycle,
• 1 Automatic drain cycle (with drain pump installed),
• Adjustable drain and rinse time ,
• Temperature reading via precise NTC probes ,
• Stainless steel washing and rinsing impellers,
• The double electric detergent and rinse aid dispenser installed as standard guarantees maximum results from each wash cycle;
• Scheduled maintenance notice ,
• Tank capacity 37 litres ,
• Tank resistance Kw.4.5,
• Boiler capacity 7.3 litres,
• Boiler resistance Kw.5.4,
• 1.34 kW (1.8 Hp) washing pump,
• Recommended water hardness 7÷10 °f,
• Water consumption per cycle at 2 bar: 2.0 lt.

Supplied :

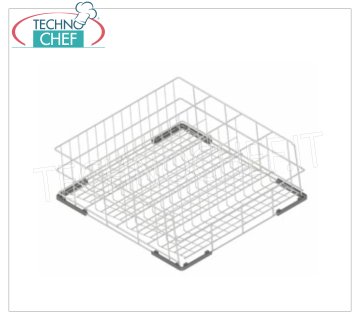

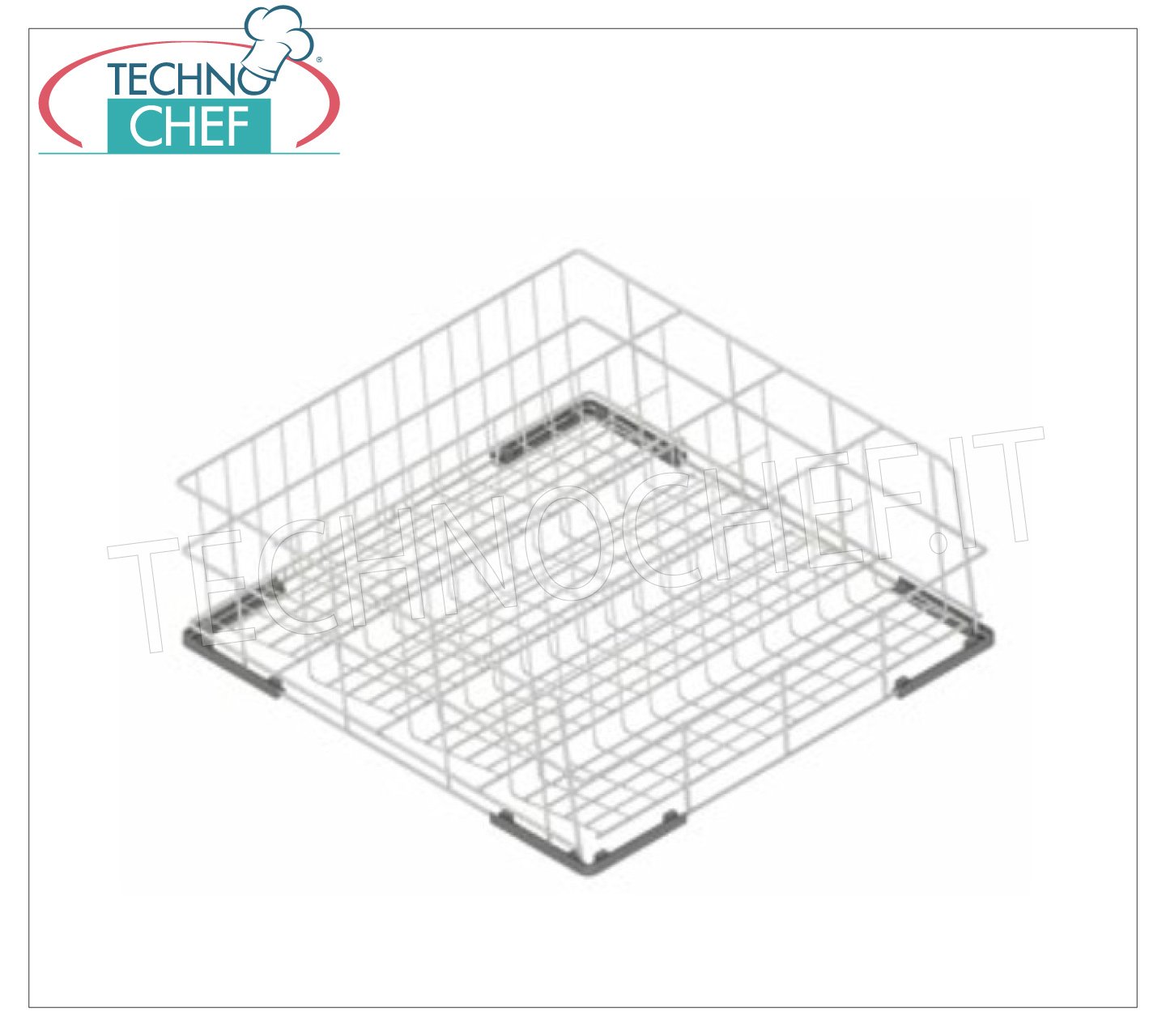

• 2 baskets for 18 plates, dim mm. 500x500x100h
• 1 basket for glasses, dim mm. 500x500x100h

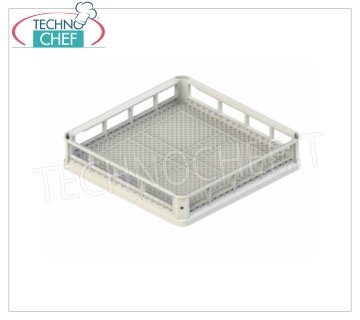

• 1 cutlery basket with 8 seats
• 2 integral tank filters

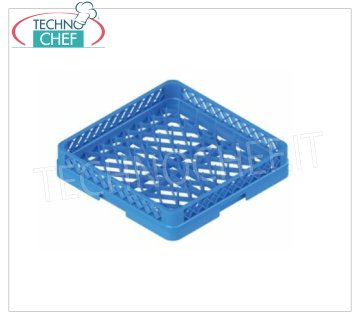

Options/Accessories:

• Pressure pump kit 0.5Hp - Code 23138
• 32W drain pump kit - Code 23139
• Pressure pump installed 0.5 HP - Code 17516
• Installed drain pump kit 32W - Code 22630

CE mark

Made in Italy
