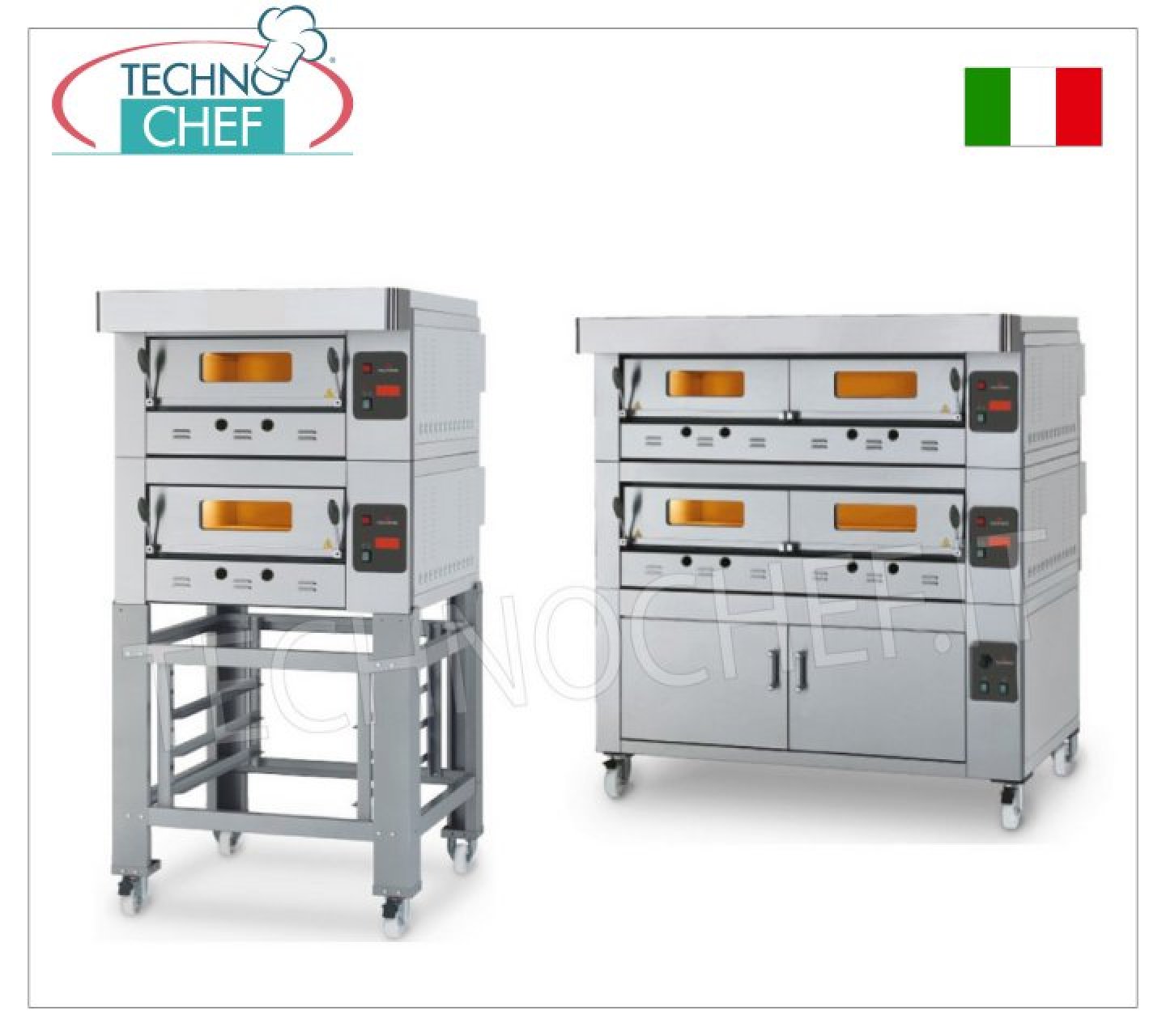

Modular gas pizza oven, ECO GAS line, chamber for 6 pizzas measuring 61x94 cm with refractory floor

MODULAR gas pizza oven, for 6 pizzas, version with STAINLESS STEEL FRONT, CHAMBER mm 610x940x150h with REFRACTORY FLOOR, thermal power 16300 Kcal/h, Weight 150 Kg, external dimensions mm 960x1350x520h

print technical specifications

Print technical data sheet without prices

available models

technical card

net weight (Kg)

150

breadth (mm)

960

depth (mm)

1350

height (mm)

520

professional description

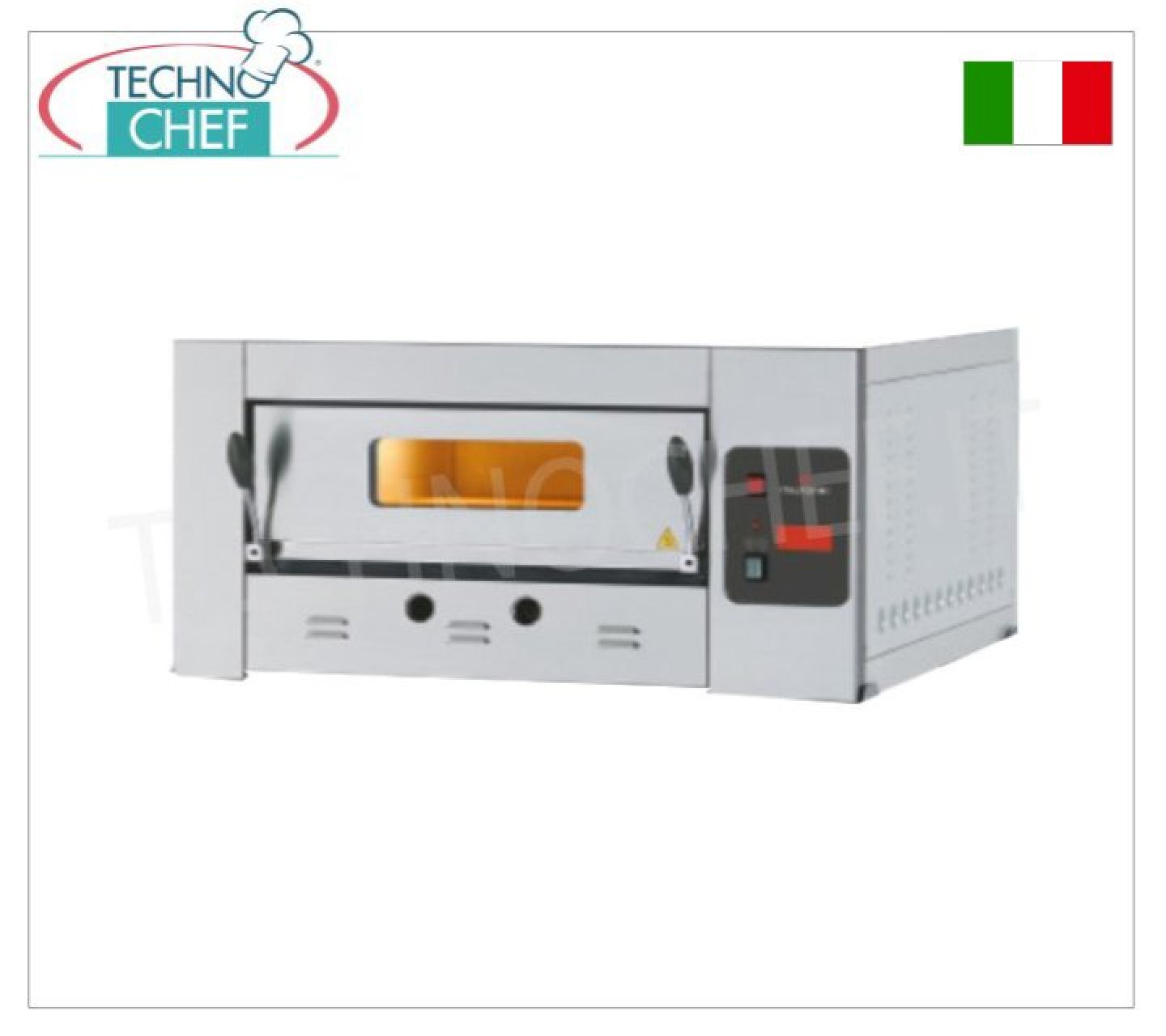

GAS PIZZA OVEN, MODULAR, for 6 PIZZAS, ECO GAS Line:

version with stainless steel front ,
cooking chambers in aluminized steel with REFRACTORY FLOOR, high performance,
CHAMBER dimensions mm 610x940x150h,
Load capacity per chamber: 6 PIZZAS diam. 300 mm or 2 trays 600x400 mm,
cooking module including hood ,
atmospheric burners placed under the refractory floor,
gas supply with safety valves ;
thermal insulation,
steam exhaust at the back of the chamber,
maximum cooking temperature 420 °C ,
digital regulation of the cooking chamber temperature,
independent controls for each room,
stabilized flame burners with automatic ignition ,
door with tempered glass window ,
counterbalanced front doors,
halogen lamps with high resistance and luminous capacity.

Accessories/Optional:

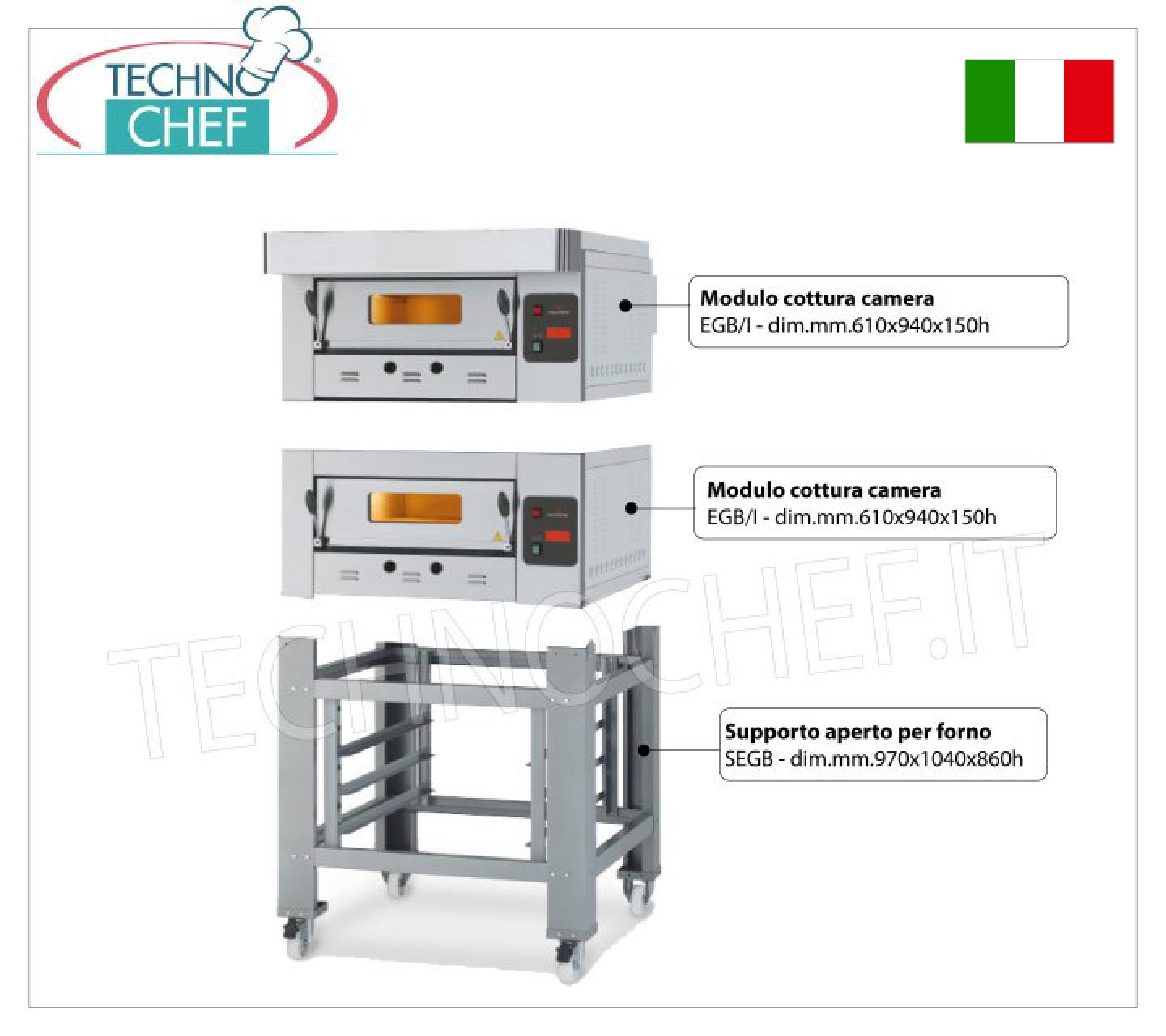

oven supports with tray holder guides made of painted steel, available in heights of 500 mm, 700 mm and 860 mm ,
Proofing cells for monoblock ovens, version with stainless steel front, electric heating with thermostatic control (temp. 0°/+90°C) . Available in heights of 500 mm and 700 mm to adapt to modules with 1 or 2 chambers.
feet for leavening cell ,
4-wheel kit , 2 of which with brakes
