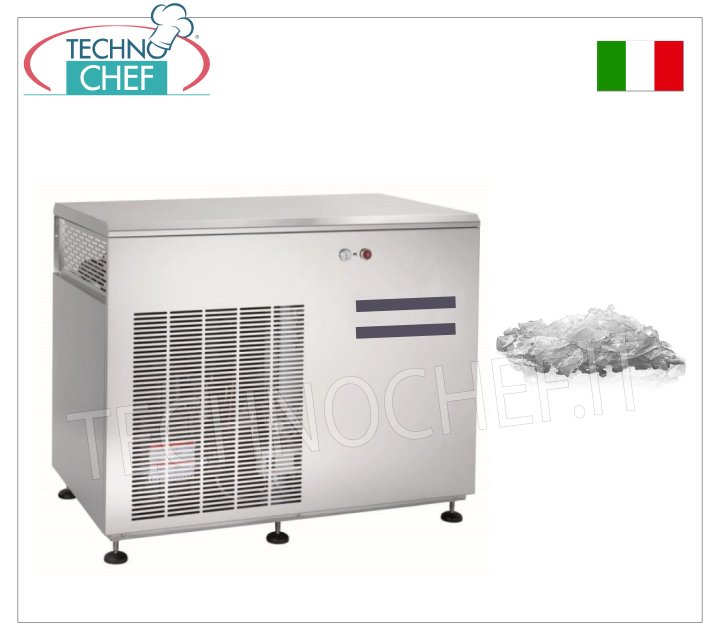

FLAT FLAKE ICE MAKER WITHOUT DEPOSIT, yield 1000 Kg / 24 hours

FLAT FLAKE ICE MAKER WITHOUT DEPOSIT, yield 1000 Kg / 24 hours, air cooling system :

.

• Built entirely of stainless steel ;
• The formation of flat flake ice occurs through a vertical fixed cylinder evaporator on whose surface water is made to flow which freezes instantly and, after being subcooled, is removed by a scraper. The flat flake ice , characterized by a thickness of 1.5 mm , comes out at a temperature that varies from -5° C to -7° C , which makes it very dry. This type of ice is therefore ideal for use in industrial processes, display and presentation of food, transport and conservation of food products.

TECHNICAL DATA :

.

• Dimensions (WxDxH): 1110x640x840h mm
• Feet height: 20 - 50 mm
• Production in 24h (21°C – 15°C): 1000 Kg
• Electrical control system
• Air Cooling System
• Standard voltage: 400V 3N~ 50Hz
• Power consumption: 4500 W
• Refrigerant type: R 452A
• Net weight: 231 Kg
• Gross weight: 261 Kg

ACCESSORIES/OPTIONALS :

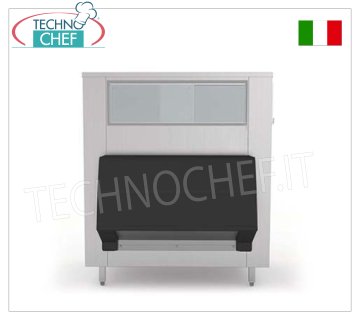

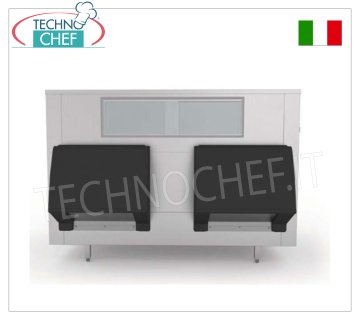

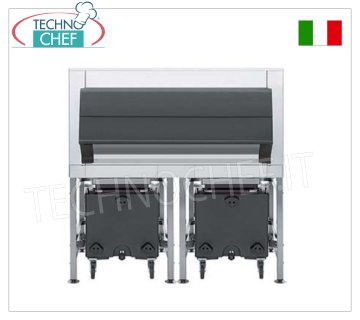

• Ice storage

CE MARK

MADE IN ITALY
