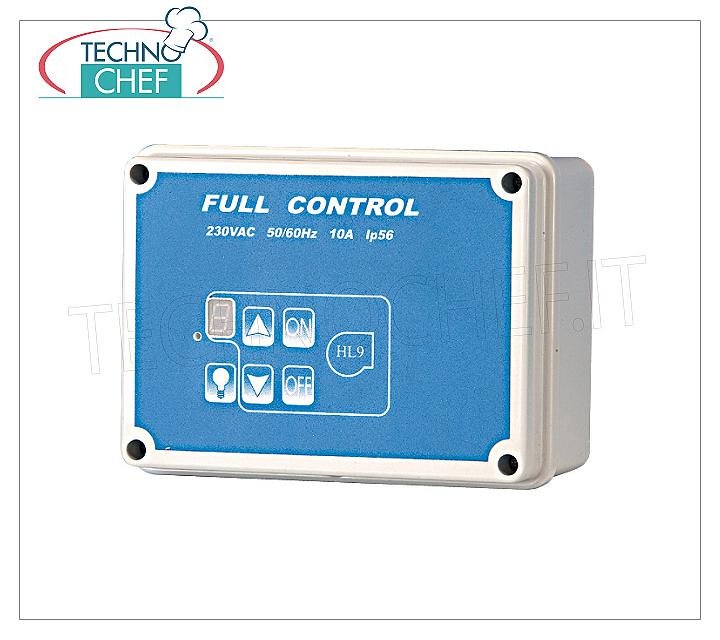

Accessory of Cappe e Aspirazione, Speed ​​regulator for hoods, digital with light switch

RED 10A digital single-phase regulator :

.

The RCS series regulators, suitable for driving fans with single-phase asynchronous motors, use special technical features to guarantee the best performance in regulation without compromising the optimal operation of the motor. For the driving phase, they use an 8-bit microprocessor that constantly follows the sinusoid with maximum precision, guaranteeing perfect switching of the triac and therefore optimal operation of the motor. Filtered according to current CE regulations, the regulators of this series are the most requested on the market.

.

• POWER SUPPLY: 275 Vac/single phase IP 55 Hz 50/60
• RATED POWER: 1000W
• Dimensions: mm 158x77x117h
• MAXIMUM STARTING CURRENT 8A
• 10A PROTECTION FUSE
• MICROPROCESSOR CONTROL CIRCUIT
• CONTINUOUS SERVICE CURRENT 6.4A

Compliant with the Standards :

EN 55014-1, EN 55014-2,

EN 602014-1, EN 60335-1,

EN 61000-3-2, EN 61000-3-3,

EN 61000-4-2, EN 61000-4-4,

EN 61000-4-5.

.
NOTE: Item available from June

.

CE MARK
